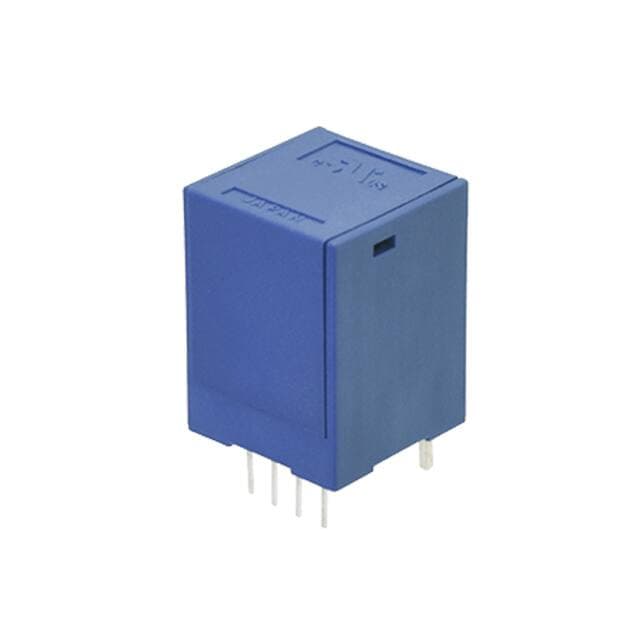

CUI CS05120B

Manufacturer No:

CS05120B

Manufacturer:

CUI

Package:

Module

Description:

CSXX120B Series Open Loop Sensor 1-Channel Bidirectional -10°C~75°C ±11.4V~12.6V DC~40kHz 5A Accuracy-±2.4% Linearity-±0.5%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CS05120B information

CUI CS05120B technical specifications, attributes, parameters and parts with similar specifications to CUI CS05120B.

Type
Parameter

Factory Lead Time
13 Weeks

Mounting Type
Through Hole

Package / Case
Module

Operating Temperature
-10°C~75°C

Series
CSXX120B

Part Status
Active

Voltage - Supply
±11.4V~12.6V

Frequency
DC~40kHz

Output
Ratiometric, Voltage

Current - Supply (Max)
25mA

Number of Channels
1

Polarization
Bidirectional

Accuracy
±2.4%

Response Time
3?s

Sensor Type
Open Loop

Linearity
±0.5%

For Measuring
AC

Current - Sensing
5A

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for CUI CS05120B.

CS05120B Overview

The current sensors are put into Module packages for safety protection. The maximum current supplied by these current sensors should be 25mA.

CS05120B Features

Operating Temperature: -10°C~75°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Open Loop
Supply Voltage: ±11.4V~12.6V
Frequency: DC~40kHz
Sensing Current: 5A
Module Package

CS05120B Applications

There are a lot of CUI Devices
CS05120B Current Sensors applications.

Motor and load control
Inverter and H-bridge current measurements
Power factor correction
Overcurrent protection
DC and AC power monitoring
Closed-L oop DC- and AC-Current Sensor Modules
Leakage Current Sensors
Industrial Monitoring and Control Systems
Overcurrent Detection
Frequency, Voltage, and Solar Inverters
