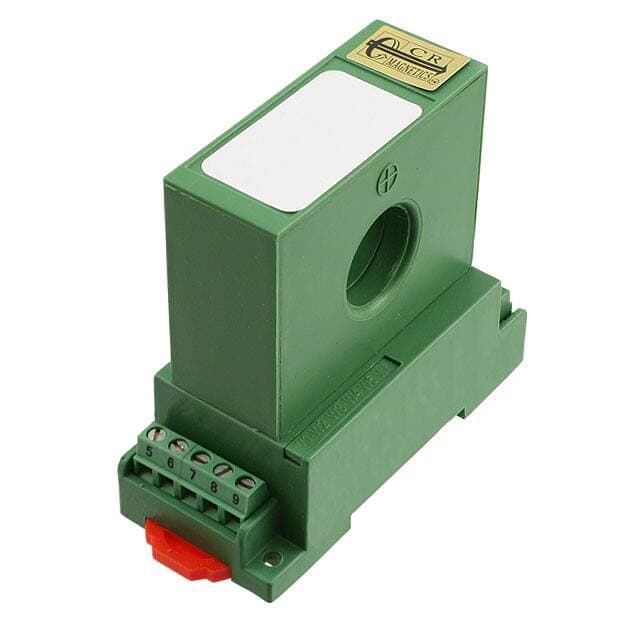

CR Magnetics Inc. CR4110-100

Manufacturer No:

CR4110-100

Manufacturer:

CR Magnetics Inc.

Package:

Module

Description:

CR4100 Series Transformer w/Conditioning Sensor 1-Channel Bidirectional 0°C~60°C 24V 20Hz~5kHz 100A Accuracy-±0.5%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CR4110-100 information

CR Magnetics Inc. CR4110-100 technical specifications, attributes, parameters and parts with similar specifications to CR Magnetics Inc. CR4110-100.

Type
Parameter

Factory Lead Time
4 Weeks

Mount
DIN Rail, Panel

Mounting Type
DIN Rail, Panel

Package / Case
Module

Operating Temperature
0°C~60°C

Packaging
Bulk

Series
CR4100

Published
2012

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
60°C

Min Operating Temperature
0°C

Voltage - Supply
24V

Frequency
20Hz~5kHz

Output
Ratiometric, 0 V ~ 5 V

Current - Supply (Max)
25mA

Polarity
Bidirectional

Number of Channels
1

Polarization
Bidirectional

Max Supply Current
25mA

Accuracy
±0.5%

Response Time
250ms

Sensor Type
Transformer w/Conditioning

For Measuring
AC

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for CR Magnetics Inc. CR4110-100.

CR4110-100 Overview

For safety reasons, the current sensors are packaged in Module packages. In order to protect the devices from damage, these current sensors are packaged in the Bulk. These current sensors should supply no more than 25mA current. Current sensors should not supply more current than 25mA. In order for these current sensors to work, the temperature must not be lower than 0°C. Nevertheless, the maximum operating temperature for the current sensors should be set to 60°C.

CR4110-100 Features

Moisture Sensitivity Level: 1 (Unlimited)
Operating Temperature: 0°C~60°C
1 Channels
Mounting Type: DIN Rail, Panel
Sensor Type: Transformer w/Conditioning
Supply Voltage: 24V
Frequency: 20Hz~5kHz
Sensing Current: 100A
Module Package

CR4110-100 Applications

There are a lot of CR Magnetics Inc.
CR4110-100 Current Sensors applications.

Inverter and H-bridge current measurements
Power factor correction
Overcurrent protection
DC and AC power monitoring
Closed-L oop DC- and AC-Current Sensor Modules
Leakage Current Sensors
Industrial Monitoring and Control Systems
Overcurrent Detection
Frequency, Voltage, and Solar Inverters
Electrical drives
