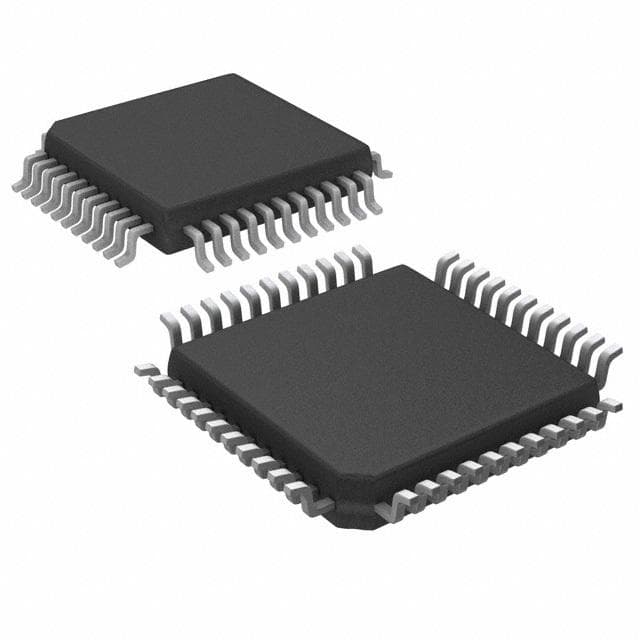

Renesas CQ82C55A

Manufacturer No:

CQ82C55A

Manufacturer:

Renesas

Package:

QFP

Description:

44 Termination 0.8mm 5V I/O Expander 5V QFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CQ82C55A information

Renesas CQ82C55A technical specifications, attributes, parameters and parts with similar specifications to Renesas CQ82C55A.

Type
Parameter

Mount
Surface Mount

Package / Case
QFP

Packaging
Bulk

Published
2005

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
44

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

HTS Code
8542.39.00.01

Subcategory
Parallel IO Port

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Supply Voltage
5V

Terminal Pitch
0.8mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
44

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
5.5V

Temperature Grade
COMMERCIAL

Supply Voltage-Min (Vsup)
4.5V

Number of I/O
24

Number of Ports
3

uPs/uCs/Peripheral ICs Type
PARALLEL IO PORT, GENERAL PURPOSE

Supply Current-Max
1mA

Length
10mm

Height Seated (Max)
2.45mm

Width
10mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas CQ82C55A.

Datasheets:

intersil-cq82c55a-datasheets-8213.pdf

CQ82C55A Overview

The board has been programmed with 24 I/Os.In the packaging with the QFP, there is a device enclosed in the package.There is an option of the Bulk case that you can choose from.As a whole, it consists of 44 terminations.In total, there are 44 pins on the part.There is voltage present at 5V as a result of the device.It is utilized to run 240 on this part due to its peak reflow temperature.3 ports are present on the device as a whole.It is capable of delivering the power at the position 5V.With Surface Mount, you can mount the part.As with other PARALLEL IO PORT, GENERAL PURPOSE uPs/uCs/peripheral ICs, it belongs to the PARALLEL IO PORT, GENERAL PURPOSE family.Parallel IO Port series is the series that it belongs to.There is a maximum operating temperature of 70°C when the device is operating.There must be a minimum working temperature of 0°C for this device in order for it to function properly.
