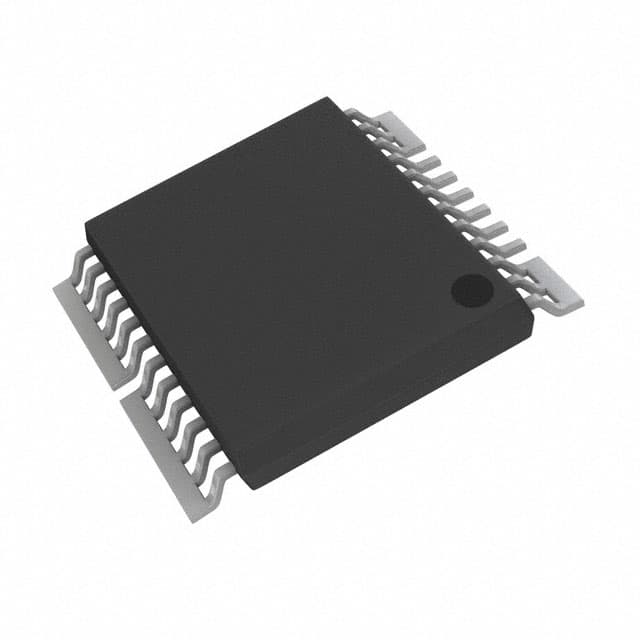

AKM CQ3303

Manufacturer No:

CQ3303

Manufacturer:

AKM

Package:

24-LSSOP (0.220, 5.60mm Width), 10 Leads

Description:

CQ Series Hall Effect, Open Loop Sensor 1-Channel Bidirectional -40°C~90°C 4.5V~5.5V 1MHz 35A Accuracy-±0.5% Linearity-±0.6%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CQ3303 information

AKM CQ3303 technical specifications, attributes, parameters and parts with similar specifications to AKM CQ3303.

Type
Parameter

Factory Lead Time
12 Weeks

Mounting Type
Surface Mount

Package / Case
24-LSSOP (0.220, 5.60mm Width), 10 Leads

Supplier Device Package
24-VSOP

Operating Temperature
-40°C~90°C

Packaging
Cut Tape (CT)

Series
CQ

Part Status
Active

Moisture Sensitivity Level (MSL)
2A (4 Weeks)

Voltage - Supply
4.5V~5.5V

Frequency
1MHz

Output
Ratiometric, Voltage

Current - Supply (Max)
11mA

Number of Channels
1

Polarization
Bidirectional

Accuracy
±0.5%

Response Time
0.5?s

Sensor Type
Hall Effect, Open Loop

Linearity
±0.6%

Sensitivity
60mV/A

For Measuring
AC/DC

Current - Sensing
35A

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for AKM CQ3303.

CQ3303 Overview

Current sensors are housed in 24-LSSOP (0.220, 5.60mm Width), 10 Leads packages to ensure their safety. It is designed to protect the current sensors from damage by packaging them in the Cut Tape (CT). In general, current sensors should provide no more than 11mA amps of current.

CQ3303 Features

Moisture Sensitivity Level: 2A (4 Weeks)
Operating Temperature: -40°C~90°C
1 Channels
Mounting Type: Surface Mount
Sensor Type: Hall Effect, Open Loop
Supply Voltage: 4.5V~5.5V
Frequency: 1MHz
Sensing Current: 35A
24-LSSOP (0.220, 5.60mm Width), 10 Leads Package

CQ3303 Applications

There are a lot of AKM Semiconductor Inc.
CQ3303 Current Sensors applications.

Leakage Current Sensors
Industrial Monitoring and Control Systems
Overcurrent Detection
Frequency, Voltage, and Solar Inverters
Electrical drives
General purpose inverters
AC variable speed drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies(UPS)
