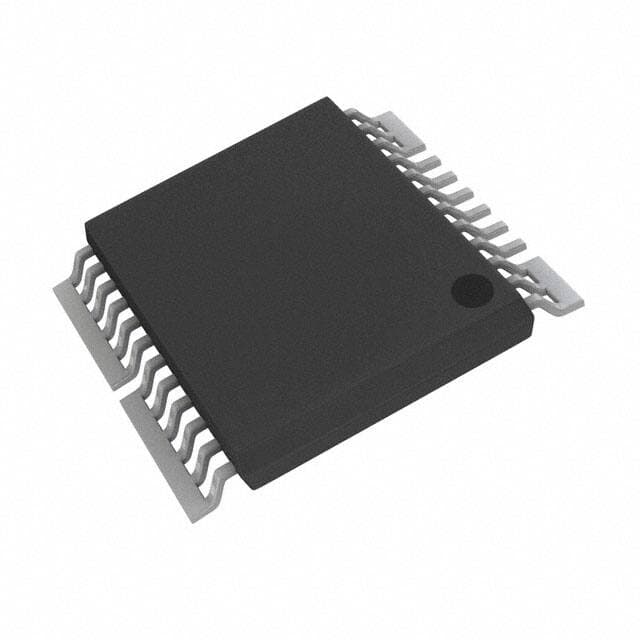

AKM CQ3203
Manufacturer No:
CQ3203
Manufacturer:
Package:
24-LSSOP (0.220, 5.60mm Width), 10 Leads
Description:
Hall Effect, Open Loop Sensor 1-Channel Bidirectional -40°C~90°C 3.3V 35.7A Accuracy-±1.3%
Quantity:
Delivery:




Payment:






In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
CQ3203 information
AKM CQ3203 technical specifications, attributes, parameters and parts with similar specifications to AKM CQ3203.
- Type
- Parameter
- Factory Lead Time
- 12 Weeks
- Mounting Type
- Surface Mount
- Package / Case
- 24-LSSOP (0.220, 5.60mm Width), 10 Leads
- Supplier Device Package
- 24-VSOP
- Operating Temperature
- -40°C~90°C
- Packaging
- Tape & Reel (TR)
- Published
- 2016
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Voltage - Supply
- 3.3V
- Output
- Ratiometric, Voltage
- Current - Supply (Max)
- 6.2mA
- Number of Channels
- 1
- Polarization
- Bidirectional
- Accuracy
- ±1.3%
- Response Time
- 0.5?s
- Sensor Type
- Hall Effect, Open Loop
- Sensitivity
- 37mV/A
- For Measuring
- AC/DC
- Current - Sensing
- 35.7A
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for AKM CQ3203.
CQ3203 Overview
The current sensors are put into 24-LSSOP (0.220, 5.60mm Width), 10 Leads packages for safety protection. These current sensors are packaged in the Tape & Reel (TR) to protect the devices from damage. The maximum current supplied by these current sensors should be 6.2mA.
CQ3203 Features
Moisture Sensitivity Level: 1 (Unlimited)
Operating Temperature: -40°C~90°C
1 Channels
Mounting Type: Surface Mount
Sensor Type: Hall Effect, Open Loop
Supply Voltage: 3.3V
Sensing Current: 35.7A
24-LSSOP (0.220, 5.60mm Width), 10 Leads Package
CQ3203 Applications
There are a lot of AKM Semiconductor Inc.
CQ3203 Current Sensors applications.
- Motor and load control
- Inverter and H-bridge current measurements
- Power factor correction
- Overcurrent protection
- DC and AC power monitoring
- Closed-L oop DC- and AC-Current Sensor Modules
- Leakage Current Sensors
- Industrial Monitoring and Control Systems
- Overcurrent Detection
- Frequency, Voltage, and Solar Inverters
