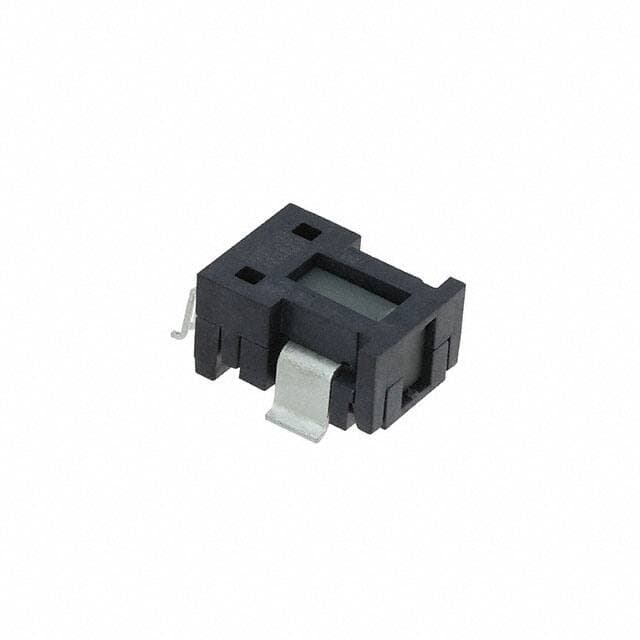

AKM CQ2093
AKM CQ2093

AKM CQ2093

Manufacturer No:

CQ2093

Manufacturer:

AKM

Package:

Module

Description:

CQ Series Hall Effect, Open Loop Sensor 1-Channel Bidirectional -40°C~90°C 4.5V~5.5V 400kHz 35A Accuracy-±1% Linearity-±1%

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CQ2093 information

AKM CQ2093 technical specifications, attributes, parameters and parts with similar specifications to AKM CQ2093.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Module
  • Operating Temperature
  • -40°C~90°C
  • Packaging
  • Tray
  • Series
  • CQ
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Max Operating Temperature
  • 90°C
  • Min Operating Temperature
  • -40°C
  • Voltage - Supply
  • 4.5V~5.5V
  • Frequency
  • 400kHz
  • Output
  • Ratiometric, Voltage
  • Current - Supply (Max)
  • 9mA
  • Polarity
  • Bidirectional
  • Number of Channels
  • 1
  • Polarization
  • Bidirectional
  • Max Supply Current
  • 9mA
  • Accuracy
  • ±1%
  • Response Time
  • 1?s
  • Sensor Type
  • Hall Effect, Open Loop
  • Linearity
  • ±1%
  • Sensitivity
  • 60mV/A
  • Current - Sensing
  • 35A
  • Sensitivity (mV/A)
  • 60 mV/A
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for AKM CQ2093.

CQ2093 Overview


Current sensors are housed in Module packages to ensure their safety. It is designed to protect the current sensors from damage by packaging them in the Tray. In general, current sensors should provide no more than 9mA amps of current. In order for current sensors to be effective, their current supply should not exceed 9mA. This current sensor must operate at a temperature greater than -40°C. Nevertheless, the current sensors should be set to 90°C as the maximum operating temperature.

CQ2093 Features


Moisture Sensitivity Level: 1 (Unlimited)
Operating Temperature: -40°C~90°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Hall Effect, Open Loop
Supply Voltage: 4.5V~5.5V
Frequency: 400kHz
Sensing Current: 35A
Module Package


CQ2093 Applications


There are a lot of AKM Semiconductor Inc.
CQ2093 Current Sensors applications.


  • Leakage Current Sensors
  • Industrial Monitoring and Control Systems
  • Overcurrent Detection
  • Frequency, Voltage, and Solar Inverters
  • Electrical drives
  • General purpose inverters
  • AC variable speed drives
  • Static converters for DC motor drives
  • Battery supplied applications
  • Uninterruptible Power Supplies(UPS)
