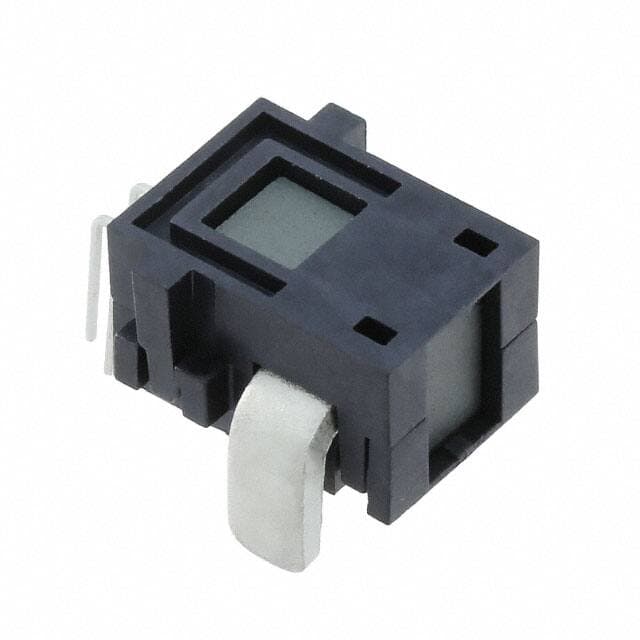

AKM CQ2063

Manufacturer No:

CQ2063

Manufacturer:

AKM

Package:

Module

Description:

CQ Series Hall Effect, Open Loop Sensor 1-Channel Bidirectional -40°C~90°C 4.5V~5.5V 400kHz 35A Accuracy-±1% Linearity-±1%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CQ2063 information

AKM CQ2063 technical specifications, attributes, parameters and parts with similar specifications to AKM CQ2063.

Type
Parameter

Factory Lead Time
12 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Module

Operating Temperature
-40°C~90°C

Packaging
Tray

Series
CQ

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
90°C

Min Operating Temperature
-40°C

Voltage - Supply
4.5V~5.5V

Frequency
400kHz

Output
Ratiometric, Voltage

Current - Supply (Max)
9mA

Polarity
Bidirectional

Number of Channels
1

Polarization
Bidirectional

Max Supply Current
9mA

Accuracy
±1%

Response Time
1μs

Sensor Type
Hall Effect, Open Loop

Linearity
±1%

Sensitivity
60mV/A

Current - Sensing
35A

Sensitivity (mV/A)
60 mV/A

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for AKM CQ2063.

CQ2063 Overview

Module packages are used for the safety protection of current sensors. In order to protect these current sensors from damage, they are packaged in the Tray. They should be capable of supplying a maximum current of 9mA. There should be no current greater than 9mA coming from current sensors. Ensure that the operating temperature of the current sensor is not lower than -40°C. It is recommended, however, to set the maximum operating temperature for the current sensors to 90°C.

CQ2063 Features

Moisture Sensitivity Level: 1 (Unlimited)
Operating Temperature: -40°C~90°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Hall Effect, Open Loop
Supply Voltage: 4.5V~5.5V
Frequency: 400kHz
Sensing Current: 35A
Module Package

CQ2063 Applications

There are a lot of AKM Semiconductor Inc.
CQ2063 Current Sensors applications.

Industrial Monitoring and Control Systems
Overcurrent Detection
Frequency, Voltage, and Solar Inverters
Electrical drives
General purpose inverters
AC variable speed drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies(UPS)
Switched Mode Power Supplies(SMPS)
