TI COP8CBR9HLQ8

Manufacturer No:

COP8CBR9HLQ8

Manufacturer:

Package:

44-WFQFN Exposed Pad

Description:

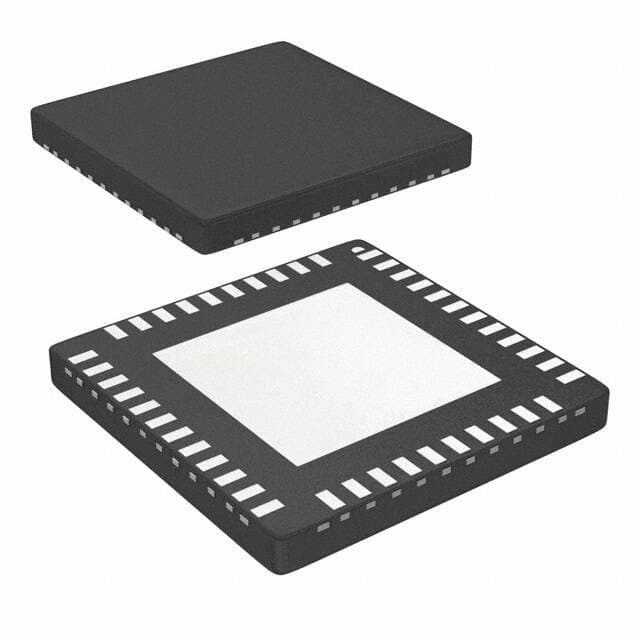

32KB 32K x 8 FLASH COP8 8-Bit Microcontroller COP8™ 8C Series COP8CBR9 20MHz 5V 44-WFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

COP8CBR9HLQ8 information

TI COP8CBR9HLQ8 technical specifications, attributes, parameters and parts with similar specifications to TI COP8CBR9HLQ8.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
44-WFQFN Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Series
COP8™ 8C

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
44

HTS Code
8542.31.00.01

Technology
CMOS

Terminal Position
QUAD

Terminal Form
NO LEAD

Supply Voltage
5V

Terminal Pitch
0.5mm

Frequency
20MHz

Base Part Number
COP8CBR9

Pin Count
44

JESD-30 Code
S-XQCC-N44

Supply Voltage-Max (Vsup)
5.5V

Supply Voltage-Min (Vsup)
2.7V

Interface
SPI, UART, USART

Memory Size
32kB

Oscillator Type
Internal

Speed
2 MHz

RAM Size
1K x 8

Voltage - Supply (Vcc/Vdd)
2.7V~5.5V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER

Core Processor
COP8

Peripherals
Brown-out Detect/Reset, POR, PWM, WDT

Program Memory Type
FLASH

Core Size
8-Bit

Program Memory Size
32KB 32K x 8

Connectivity
Microwire/Plus (SPI), UART/USART

Bit Size
8

Data Converter
A/D 16x10b

Access Time
20 μs

Has ADC
YES

DMA Channels
NO

PWM Channels
YES

DAC Channels
NO

Length
7mm

Height Seated (Max)
0.8mm

Width
7mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI COP8CBR9HLQ8.

Datasheets:

texasinstruments-cop8cbr9hva8nopb-datasheets-7131.pdf

COP8CBR9HLQ8 Overview

44-WFQFN Exposed Pad-packages are available. There are 37 I/O ports on this device. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. There is a 8-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of -40°C~85°C TA for this Microcontroller. An electrical component of this type belongs to the COP8™ 8C series. This program memory has a size of 32KB 32K x 8, which indicates what the size of the program memory is. COP8 Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER power supply/socket/peripheral ICs category. This chip has a total of 44 terminations on MCU chip. You get a 8-bit size. This Microcontroller chip is powered by 5V volts. There are NO DMA channels on this Microcontroller chip. The part has a memory size of 32kB. The base part number COP8CBR9 provides alternatives. This device is extremely efficient when operated at a frequency of 20MHz. Using the PWM channel YES, the device works with the motor. It has 44 pins in total.
