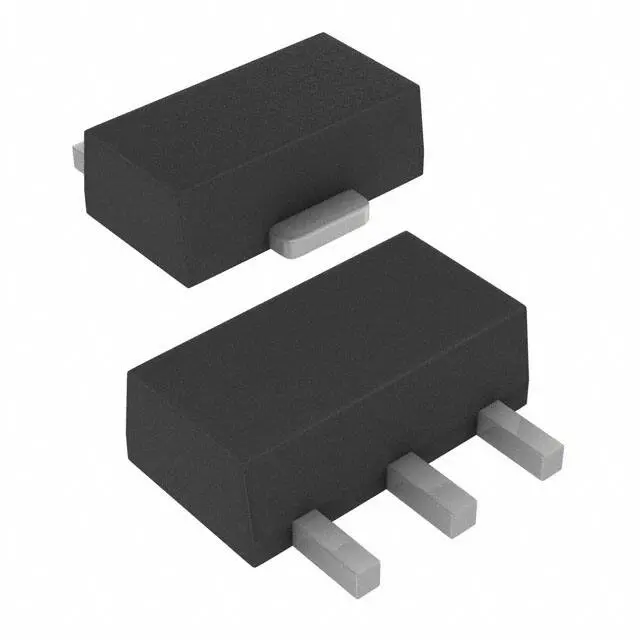

MA/COM CMM6004-SC-0G0T

Manufacturer No:

CMM6004-SC-0G0T

Manufacturer:

MA/COM

Package:

TO-243AA

Description:

14.5dB General Purpose WIDE BAND MEDIUM POWER Tape & Reel (TR) 50MHz~3GHz 3V~5V P1dB:23.5dBm 2.1dB 150mA Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CMM6004-SC-0G0T information

MA/COM CMM6004-SC-0G0T technical specifications, attributes, parameters and parts with similar specifications to MA/COM CMM6004-SC-0G0T.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
TO-243AA

Weight
130.492855mg

Packaging
Tape & Reel (TR)

Published
2009

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Terminal Finish
Matte Tin (Sn)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Voltage - Supply
3V~5V

Construction
COMPONENT

Frequency
50MHz~3GHz

Operating Supply Voltage
5V

Number of Channels
1

Test Frequency
1.9GHz

Operating Supply Current
150mA

Nominal Supply Current
180mA

Max Supply Current
180mA

Gain
14.5dB

RF/Microwave Device Type
WIDE BAND MEDIUM POWER

Input Power-Max (CW)
20dBm

Characteristic Impedance
50Ohm

Noise Figure
2.1dB

P1dB
23.5dBm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for MA/COM CMM6004-SC-0G0T.

Datasheets:

macomtechnologysolutions-cmm6004sc0g0t-datasheets-6895.pdf

CMM6004-SC-0G0T Overview

RF Amplifier with cost-effective WIDE BAND MEDIUM POWER RF/Microwave Device Type.An RF amplifier with the General Purpose RF type.High reliability can be achieved by using the advanced RF Amp' packaging Tape & Reel (TR).Due to its TO-243AA packaging, it is convenient to ship overseas.Surface Mount is the recommended mount Amplifiers RF direction.Amplifiers RFs that can supply 3V~5V volts are available.In order to perform at its best, the supply current needs to be operated at 150mA.There should be 85°C temperature above 85°C degrees Celsius when it runs.

CMM6004-SC-0G0T Features

WIDE BAND MEDIUM POWER RF/Microwave Amplifier
RF Type General Purpose
3V~5V voltage

CMM6004-SC-0G0T Applications

There are a lot of M/A-Com Technology Solutions
CMM6004-SC-0G0T RF Amplifiers applications.

Recreational
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
Galileo
Wireless communications
ISM applications
Wireless infrastructure
