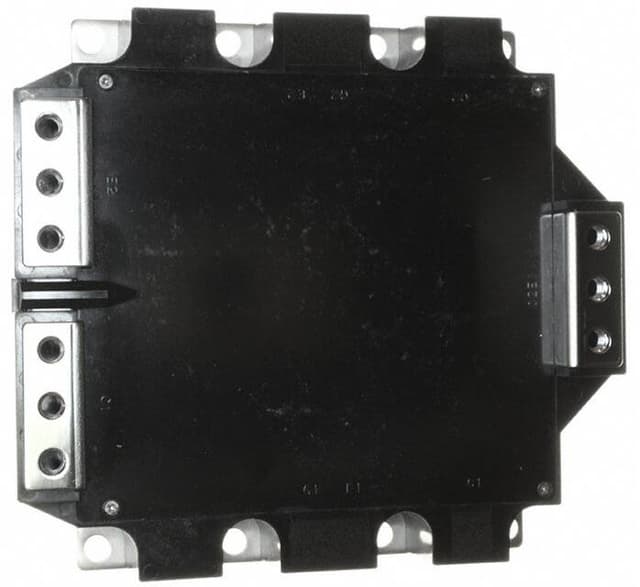

MITSUBISHI CM1000DU-34NF

Manufacturer No:

CM1000DU-34NF

Manufacturer:

MITSUBISHI

Package:

Module

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CM1000DU-34NF information

MITSUBISHI CM1000DU-34NF technical specifications, attributes, parameters and parts with similar specifications to MITSUBISHI CM1000DU-34NF.

Type
Parameter

Mount
Chassis Mount

Mounting Type
Chassis Mount

Package / Case
Module

Number of Pins
15

Transistor Element Material
SILICON

Operating Temperature
-40°C~150°C TJ

Series
IGBTMOD?

Published
2003

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
7

Subcategory
Insulated Gate BIP Transistors

Voltage - Rated DC
1.7kV

Max Power Dissipation
3.9kW

Terminal Position
UPPER

Terminal Form
UNSPECIFIED

Current Rating
1kA

Pin Count
7

JESD-30 Code
R-XUFM-X7

Number of Elements
2

Configuration
Half Bridge

Case Connection
ISOLATED

Power - Max
3900W

Polarity/Channel Type
N-CHANNEL

Input
Standard

Collector Emitter Voltage (VCEO)
2.8V

Max Collector Current
1kA

Current - Collector Cutoff (Max)
1mA

Collector Emitter Breakdown Voltage
1.7kV

Voltage - Collector Emitter Breakdown (Max)
1700V

Current - Collector (Ic) (Max)
1000A

Input Capacitance
220nF

Turn On Time
750 ns

Vce(on) (Max) @ Vge, Ic
2.8V @ 15V, 1000A

Turn Off Time-Nom (toff)
1100 ns

NTC Thermistor
No

Gate-Emitter Voltage-Max
20V

Input Capacitance (Cies) @ Vce
220nF @ 10V

REACH SVHC
Unknown

RoHS Status
RoHS Compliant
