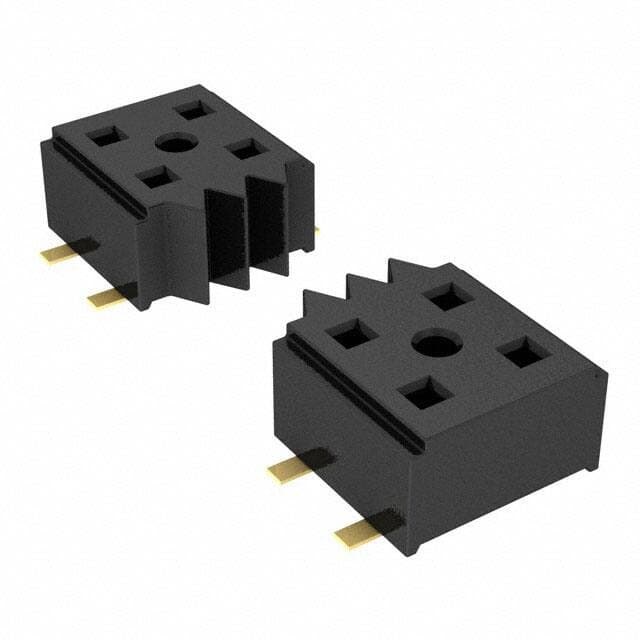

SAMTEC CLT-120-02-G-D-A-K-TR

Manufacturer No:

CLT-120-02-G-D-A-K-TR

Manufacturer:

SAMTEC

Package:

Description:

2 Rows Receptacle Solder Surface Mount Tape & Reel (TR) 40 Positions Female Socket

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CLT-120-02-G-D-A-K-TR information

SAMTEC CLT-120-02-G-D-A-K-TR technical specifications, attributes, parameters and parts with similar specifications to SAMTEC CLT-120-02-G-D-A-K-TR.

Type
Parameter

Factory Lead Time
3 Weeks

Mounting Type
Surface Mount

Contact Shape
Square

Housing Material
Polymer

Board Mounting Option
POSITIONING PIN

Contact Finish Mating
Gold

Contact Materials
Phosphor Bronze

Insulation Materials
Liquid Crystal Polymer (LCP)

Operating Temperature
-55°C~125°C

Packaging
Tape & Reel (TR)

Series
CLT

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Receptacle

Number of Positions
40

Number of Rows
2

Gender
Female

Additional Feature
E.L.P., LOW PROFILE, TIGER CLAW CONTACT

Fastening Type
Push-Pull

MIL Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Female Socket

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
4.1A per Contact

Total Number of Contacts
40

Orientation
Straight

Depth
5.16mm

Insulation Height
0.083 2.10mm

Style
Board to Board

Number of Positions Loaded
All

Pitch - Mating
0.079 2.00mm

Insulation Color
Black

Number of Conductors
ONE

Reference Standard
UL

Reliability
COMMERCIAL

Row Spacing - Mating
0.079 (2.00mm)

Number Of PCB Rows
2

PCB Contact Pattern
RECTANGULAR

Mating Information
MULTIPLE MATING PARTS AVAILABLE

Body Breadth
0.157 inch

Contact Resistance
10mOhm

Download datasheets and manufacturer documentation for SAMTEC CLT-120-02-G-D-A-K-TR.

CLT-120-02-G-D-A-K-TR Overview

Packaging is Receptacle.Surface Mount is the mounting type.Packaging for the product is carried out via a Tape & Reel (TR) case.As a product of the CLT Series, it can be found in this category.There are also other features such as E.L.P., LOW PROFILE, TIGER CLAW CONTACT, to name only a few.The device is operating at -55°C~125°C Operating Temperature.

CLT-120-02-G-D-A-K-TR Features

CLT series

CLT-120-02-G-D-A-K-TR Applications

There are a lot of Samtec Inc.
CLT-120-02-G-D-A-K-TR Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
