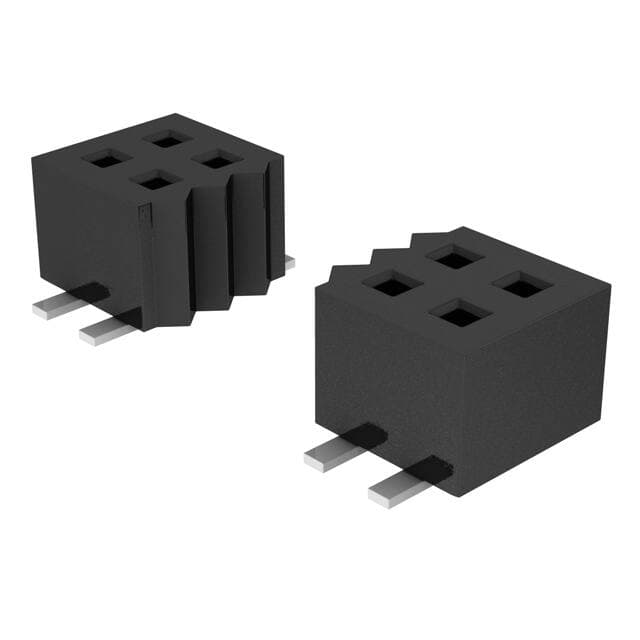

Samtec CLP-110-02-F-D-K-TR

Manufacturer No:

CLP-110-02-F-D-K-TR

Manufacturer:

Package:

Description:

2 Rows Receptacle Solder Phosphor Bronze Surface Mount Tape & Reel (TR) Gold Liquid Crystal Polymer (LCP) 20 Positions Female Socket

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CLP-110-02-F-D-K-TR information

Samtec CLP-110-02-F-D-K-TR technical specifications, attributes, parameters and parts with similar specifications to Samtec CLP-110-02-F-D-K-TR.

Type
Parameter

Factory Lead Time
3 Weeks

Contact Material
Phosphor Bronze

Mounting Type
Surface Mount

Contact Shape
Square

Insulation Material
Liquid Crystal Polymer (LCP)

Housing Material
Polymer

Mounting Option 1
LOCKING

Operating Temperature
-55°C~125°C

Packaging
Tape & Reel (TR)

Series
CLP

Published
2013

JESD-609 Code
e3

Feature
Pick and Place

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Receptacle

Number of Positions
20

Number of Rows
2

Additional Feature
E.L.P., LOW PROFILE, TIGER CLAW

HTS Code
8536.69.40.40

Fastening Type
Push-Pull

Voltage - Rated DC
340V

Contact Finish - Mating
Gold

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Female Socket

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
3.3A per Contact

Total Number of Contacts
20

Orientation
Straight

Depth
3.05mm

Insulation Height
0.084 2.14mm

Style
Board to Board

Number of Positions Loaded
All

Pitch - Mating
0.050 1.27mm

Insulation Color
Black

Number of Conductors
ONE

Reference Standard
UL

Voltage - Rated AC
240V

Reliability
COMMERCIAL

Row Spacing - Mating
0.050 (1.27mm)

Download datasheets and manufacturer documentation for Samtec CLP-110-02-F-D-K-TR.

CLP-110-02-F-D-K-TR Overview

Currently, it is packaged in Receptacle.The mounting type of the device is Surface Mount.A Tape & Reel (TR) case is used to package the product.A product of the CLP Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as E.L.P., LOW PROFILE, TIGER CLAW, to name a few.A number of features make the Pick and Place feature more powerful.-55°C~125°C Operating Temperature is the default operating temperature for the device.

CLP-110-02-F-D-K-TR Features

CLP series

CLP-110-02-F-D-K-TR Applications

There are a lot of Samtec Inc.
CLP-110-02-F-D-K-TR Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
