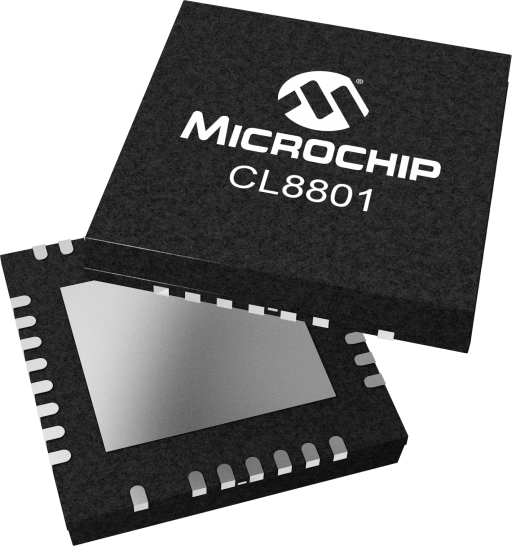

Microchip CL8801K63-G
Microchip CL8801K63-G

Microchip CL8801K63-G

Manufacturer No:

CL8801K63-G

Manufacturer:

Microchip

Package:

33-VFQFN Exposed Pad

Description:

SEQUENTIAL LINEAR LED DRIVER

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step1：Prepare product

Step2：Desiccant Protection

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step3：Vacuum Packaging

Step4：Individual Package

Step4：Individual Package

Step5：Anti-collision Filling

Step5：Anti-collision Filling

Step6：Packaging Box

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

CL8801K63-G Information

Microchip CL8801K63-G technical specifications, attributes, parameters and parts with similar specifications to Microchip CL8801K63-G.

  • Type
  • Parameter
  • Input Voltage Min (V)
  • 90
  • Input Voltage Max (V)
  • 275
  • V OUT Min (VDC)
  • 70
  • V OUT Max (VDC)
  • 350
  • Output Current (peak mA)
  • 200
  • Dimming
  • External
  • Parallelable
  • Yes
  • Package
  • QFN-33
  • Features
  • 4-Stage
  • Type
  • Parameter

Download datasheets and manufacturer documentation for Microchip CL8801K63-G.

Data Sheets:

The CL8801 is designed to drive a long string of inexpensive, low current LEDs directly from the AC mains. A basic driver circuit consists of the CL8801, four resistors, and a bridge rectifier. Two to four additional components are optional for various levels of transient protection. No capacitors, EMI filters, or power factor correction circuits are needed. A string of series/parallel LEDs is tapped at four locations. Four linear current regulators sink current at each tap and are sequentially turned on and off, tracking the input sine wave voltage. Voltage across each regulator is minimized when conducting, providing high efficiency. Output current at each tap is individually resistor-adjustable. Cross-regulation, as the CL8801 switches from one regulator to the next, provides smooth transitions. The current waveform can be tailored to optimize for input voltage range, line/load regulation, output power/current, efficiency, power factor, THD, dimmer compatibility, and LED utilization. With the addition of an RC network, the driver is compatible with phase dimming.

    • Minimal component count (base config: CL8801 + 4 resistors + diode bridge)
    • No magnetics, no capacitors
    • Up to 7.5W output (13W w/ heat sink)
    • >110Lm/W using efficient LEDs
    • 85% electrical efficiency
    • >0.95 power factor
    • <30% THD line current
    • Low conducted EMI w/o filters
    • 85% LED luminous utilization
    • Phase dimmer compatible with an RC network
