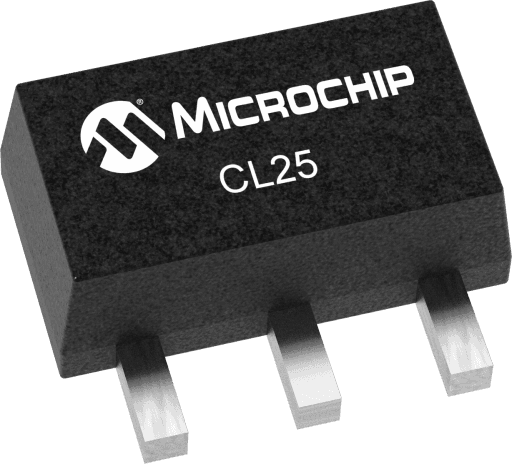

Microchip CL25N3-G

Manufacturer No:

CL25N3-G

Manufacturer:

Microchip

Package:

TO-226-3, TO-92-3 (TO-226AA)

Description:

SIMPLE 90V, 25mA, TEMPERATURE COMPENSATED CONSTANT CURRENT LED DRIVER IC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CL25N3-G information

Microchip CL25N3-G technical specifications, attributes, parameters and parts with similar specifications to Microchip CL25N3-G.

Type
Parameter

+Vin min (V)
5.0

+Vin max (V)
90

Vout min (V)
5.0

Vout max (V)
90

Output Current (mA)
25

Dimming
External FET

Parallelable
Yes

Package
TO-92, SOT-89

Features
--

Download datasheets and manufacturer documentation for Microchip CL25N3-G.

Data Sheets:

68921c7cbd312608a3c437df0da6e9cc.pdf

CL25 is a high voltage, temperature compensated, constant current source. The device is trimmed to provide a constant current of 25mA±10% at an input voltage of 5.0 - 90V. No external components are required. The device can be used as a two terminal constant current source or constant current sink. A typical application for the CL25 is to drive LEDs with a constant current of 25mA. Multiple CL2s can also be used in parallel to provide higher currents such as 50mA, 75mA or 100mA. The device is available in TO-92 and TO-243AA (SOT-89) packaging.

5.0 - 90V operating range (VA-B)
25mA ±10% at 5.0 - 90V
0.01%/°C typical temperature coefficient
No external components (two terminal device)
Can be paralleled for higher current
