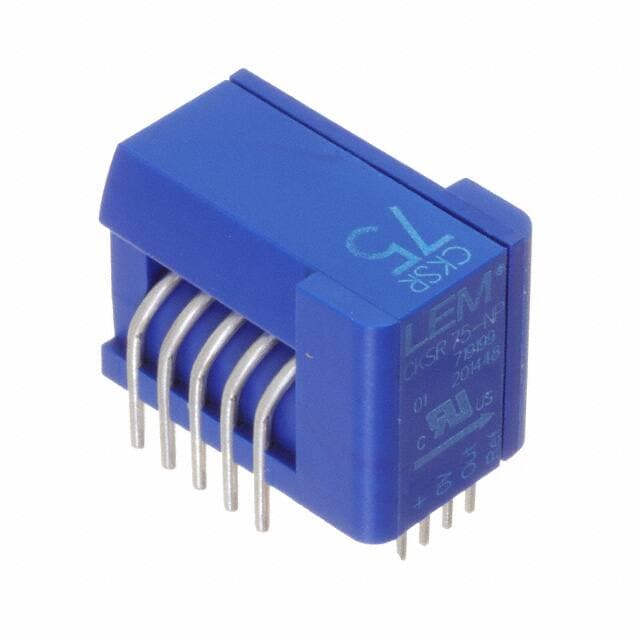

LEM CKSR 75-NP

Manufacturer No:

CKSR 75-NP

Manufacturer:

LEM

Package:

Module

Description:

CKSR Series Flux Gate, Closed Loop Sensor 1-Channel Bidirectional -40°C~105°C 4.75V~5.25V 300kHz 75A Accuracy-±0.8% Linearity-±1%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CKSR 75-NP information

LEM CKSR 75-NP technical specifications, attributes, parameters and parts with similar specifications to LEM CKSR 75-NP.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Through Hole

Package / Case
Module

Operating Temperature
-40°C~105°C

Packaging
Tray

Series
CKSR

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Voltage - Supply
4.75V~5.25V

Frequency
300kHz

Output
Ratiometric, Voltage

Current - Supply (Max)
20mA

Number of Channels
1

Polarization
Bidirectional

Accuracy
±0.8%

Response Time
0.3μs

Sensor Type
Flux Gate, Closed Loop

Linearity
±1%

Sensitivity
12.5mV/A

For Measuring
AC/DC

Current - Sensing
75A

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for LEM CKSR 75-NP.

Datasheets:

lemusainc-cksr75np-datasheets-2197.pdf

CKSR 75-NP Overview

For safety reasons, the current sensors are packaged in Module packages. In order to protect the devices from damage, these current sensors are packaged in the Tray. These current sensors should supply no more than 20mA current.

CKSR 75-NP Features

Moisture Sensitivity Level: Not Applicable
Operating Temperature: -40°C~105°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Flux Gate, Closed Loop
Supply Voltage: 4.75V~5.25V
Frequency: 300kHz
Sensing Current: 75A
Module Package

CKSR 75-NP Applications

There are a lot of LEM USA Inc.
CKSR 75-NP Current Sensors applications.

Inverter and H-bridge current measurements
Power factor correction
Overcurrent protection
DC and AC power monitoring
Closed-L oop DC- and AC-Current Sensor Modules
Leakage Current Sensors
Industrial Monitoring and Control Systems
Overcurrent Detection
Frequency, Voltage, and Solar Inverters
Electrical drives
