BOURNS CHF3020CBF500L
BOURNS CHF3020CBF500L

BOURNS CHF3020CBF500L

Manufacturer No:

CHF3020CBF500L

Manufacturer:

BOURNS

Package:

Flat Box, Terminator

Description:

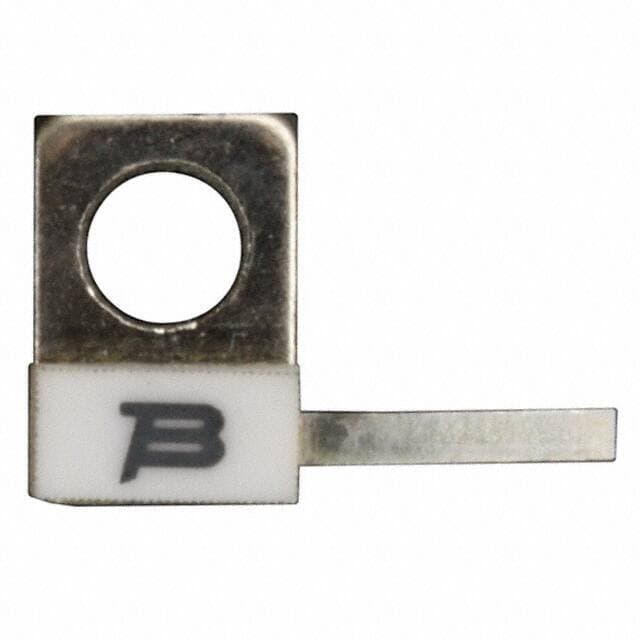

Flange Mount Flat Box, Terminator Bulk Power Module 0Hz~2GHz CHF3020 18.08mm

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CHF3020CBF500L information

BOURNS CHF3020CBF500L technical specifications, attributes, parameters and parts with similar specifications to BOURNS CHF3020CBF500L.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Flanges
  • Mounting Type
  • Flange Mount
  • Package / Case
  • Flat Box, Terminator
  • Housing Material
  • Aluminium
  • Packaging
  • Bulk
  • Series
  • CHF - RF Power
  • Published
  • 2009
  • Tolerance
  • 5%
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Axial
  • Resistance
  • 50Ohm
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -55°C
  • Composition
  • Thick Film
  • Power Rating
  • 10W
  • Max Power Dissipation
  • 10W
  • Depth
  • 7.62mm
  • Frequency
  • 0Hz~2GHz
  • Base Part Number
  • CHF3020
  • Military Standard
  • Not
  • Function
  • Power Module
  • Lead/Base Style
  • Tab
  • VSWR-Max
  • 1.3
  • Input Power-Max (CW)
  • 40dBm
  • Height
  • 3.7mm
  • Length
  • 18.08mm
  • Width
  • 5.08mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for BOURNS CHF3020CBF500L.

Datasheets:

ConflictMineralStatement:

CHF3020CBF500L Overview


RF modulator operates based on the frequency of 0Hz~2GHz.With the enhanced Flat Box, Terminator package, this RF IC is excellent.This RF modulator is mounted in the Bulk package.You can place this RF modulator to any Flange Mount-type PCB or development board.It operates with the RF switch IC's maximal operating temperature of 150°C to ensure its reliability.It operates with the RF switch IC's minimal operating temperature of -55°C to ensure its reliability.

CHF3020CBF500L Features


Frequency of 0Hz~2GHz
Flat Box, Terminator package
Bulk


CHF3020CBF500L Applications


There are a lot of Bourns Inc.
CHF3020CBF500L RF Misc ICs and Modules applications.


  • PLL frequency range extender
  • Point-to-point radios
  • VSAT radios
  • Communications test equipmen
  • PA linearization
  • PA predistortion
  • Amplitude modulation
  • Phase modulation
  • Variable matched attenuator
  • Phase shifter
