BOURNS CHF12545CBF500R

Manufacturer No:

CHF12545CBF500R

Manufacturer:

BOURNS

Package:

Flat Box, Terminator

Description:

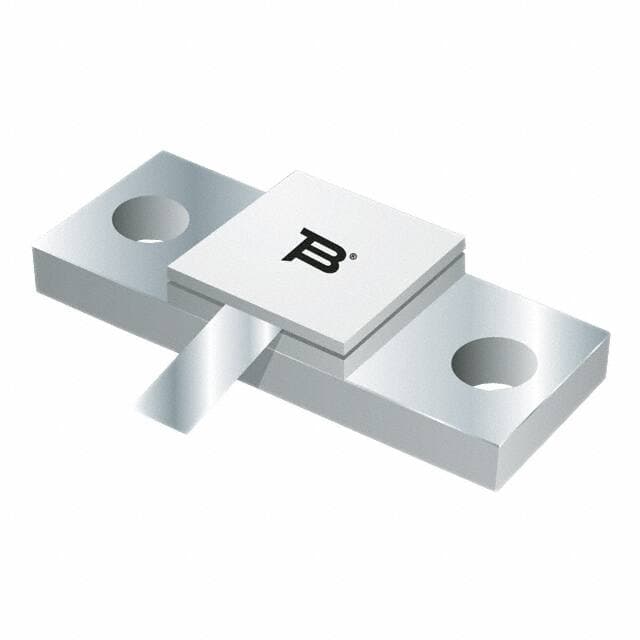

Flange Mount Flat Box, Terminator Tray Power Module 0Hz~1GHz 2 Terminations CHF12545 31.75mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CHF12545CBF500R information

BOURNS CHF12545CBF500R technical specifications, attributes, parameters and parts with similar specifications to BOURNS CHF12545CBF500R.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Flanges

Mounting Type
Flange Mount

Package / Case
Flat Box, Terminator

Housing Material
Aluminium

Packaging
Tray

Series
CHF

Published
2008

Tolerance
5%

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Axial

Resistance
50Ohm

Max Operating Temperature
150°C

Min Operating Temperature
-55°C

Composition
Thick Film

Power Rating
500W

Max Power Dissipation
500W

Depth
27.7mm

Resistor Type
FIXED RESISTOR

Frequency
0Hz~1GHz

Base Part Number
CHF12545

Military Standard
Not

Case Code (Metric)
3112

Case Code (Imperial)
2545

Lead/Base Style
Tab

Height
5.07mm

Length
31.75mm

Width
12.7mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for BOURNS CHF12545CBF500R.

Datasheets:

bourns-chf12545cbf500r-datasheets-6635.pdf

ConflictMineralStatement:

bourns-ptf01152b103b2-conflictmineralstatement-5082.pdf

CHF12545CBF500R Overview

0Hz~1GHz is the frequency in which RF modulator operates.An excellent RF IC thanks to its enhanced Flat Box, Terminator package.The Tray package houses this RF modulator.A Flange Mount-type PCB or development board can be used to place this RF modulator.This RF module has 2 terminations for driving and receiving data signals.During operation, the RF switch IC's temperature must be below 150°C.It is important that this RF switch IC does not operate at -55°C degrees Celsius at its minimum operating temperature.

CHF12545CBF500R Features

Frequency of 0Hz~1GHz
Flat Box, Terminator package
Tray
2 terminations

CHF12545CBF500R Applications

There are a lot of Bourns Inc.
CHF12545CBF500R RF Misc ICs and Modules applications.

Communications test equipmen
PA linearization
PA predistortion
Amplitude modulation
Phase modulation
Variable matched attenuator
Phase shifter
Cellular base stations
Radio links
Fixed wireless access
