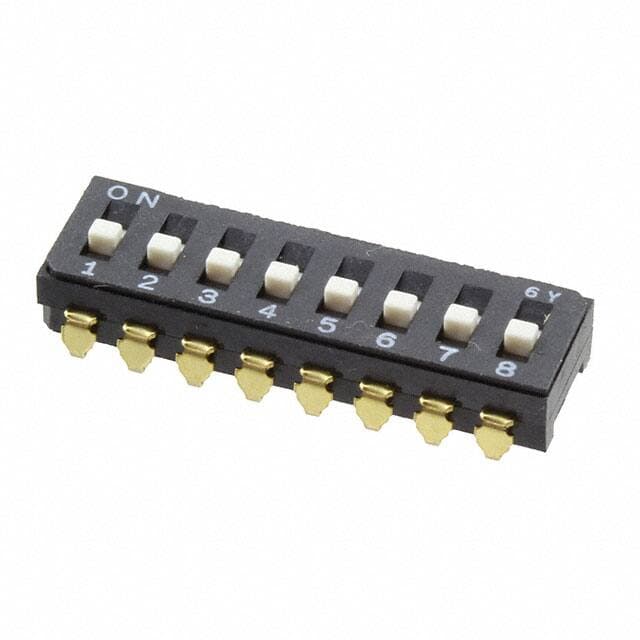

Nidec Copal CFS-0802MA
Manufacturer No:
CFS-0802MA
Manufacturer:
Package:
Description:
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
CFS-0802MA information
Nidec Copal CFS-0802MA technical specifications, attributes, parameters and parts with similar specifications to Nidec Copal CFS-0802MA.
- Type
- Parameter
- Factory Lead Time
- 11 Weeks
- Contact Material
- Copper Alloy
- Contact Plating
- Gold
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Body Material
- Polyphenylene Sulfide (PPS)
- Operating Temperature
- -40°C~85°C
- Packaging
- Tube
- Series
- CFS
- Published
- 2015
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- J-Hook
- Number of Positions
- 8
- Max Operating Temperature
- 85°C
- Min Operating Temperature
- -40°C
- Voltage - Rated
- 6VDC
- Voltage - Rated DC
- 6V
- Current Rating (Amps)
- 100mA
- Pitch
- 0.100 2.54mm Full
- Current Rating
- 100mA
- Contact Finish
- Gold
- Termination Style
- J Lead
- Actuator Type
- Slide (Standard)
- Electrical Life
- 1,000 Cycles
- Throw Configuration
- 8PST, SPST
- Max Voltage Rating (DC)
- 24V
- Washable
- No
- Actuator Level
- Raised
- Length
- 0.858 21.80mm
- Height Above Board
- 0.178 4.52mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for Nidec Copal CFS-0802MA.
CFS-0802MA Description
The CFS-0802MA is a SLIDE SWITCH (FULL PITCH). When used to form or break a connection between a single conductor and either of two additional single conductors, SPDT switches are also referred to as three-way switches. These switches typically have three terminals that are typically utilized in pairs.
CFS-0802MA Features
RoHS compliant
Excellent contact stability by twin Gold-plated contact
CFS-0802MA Applications
Communication devices
Air-conditioning equiment
Vending machines
Various control equipment
