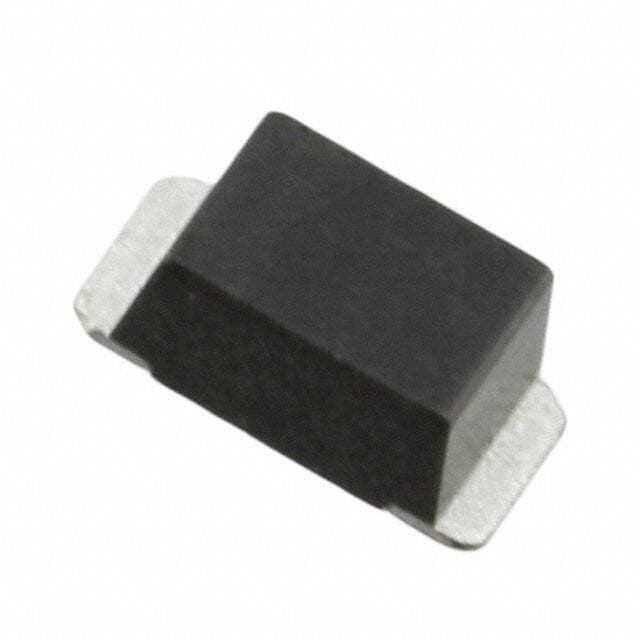

Comchip Technology CDBM140-G

Manufacturer No:

CDBM140-G

Manufacturer:

Comchip Technology

Package:

SOD-123T

Description:

Schottky Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 500mV @ 1A -50°C~125°C 500?A @ 40V 2-Termination Tape & Reel (TR) SOD-123T Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CDBM140-G information

Comchip Technology CDBM140-G technical specifications, attributes, parameters and parts with similar specifications to Comchip Technology CDBM140-G.

Type
Parameter

Factory Lead Time
10 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
SOD-123T

Diode Element Material
SILICON

Packaging
Tape & Reel (TR)

Published
2012

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Terminal Finish
Tin (Sn)

Additional Feature
LOW POWER LOSS

HTS Code
8541.10.00.80

Subcategory
Rectifier Diodes

Terminal Position
DUAL

Terminal Form
FLAT

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
CDBM140

JESD-30 Code
R-PDSO-F2

Operating Temperature (Max)
125°C

Configuration
SINGLE

Speed
Fast Recovery =< 500ns, > 200mA (Io)

Diode Type
Schottky

Current - Reverse Leakage @ Vr
500?A @ 40V

Voltage - Forward (Vf) (Max) @ If
500mV @ 1A

Max Reverse Leakage Current
500?A

Operating Temperature - Junction
-50°C~125°C

Max Surge Current
30A

Output Current-Max
1A

Max Reverse Voltage (DC)
40V

Average Rectified Current
1A

Capacitance @ Vr, F
120pF @ 4V 1MHz

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Comchip Technology CDBM140-G.

Datasheets:

comchiptechnology-cdbm140g-datasheets-9195.pdf

CDBM140-G Overview

Reverse leakage current from this device is 500?A volts at its maximum.For this device, the average rectified current is 1A volts.Phase diode rectifier is possible to use a surge current of maximum value 30A.1A represents the maximum output current.

CDBM140-G Features

a maximal reverse leakage current of 500?A volts
an average rectified current of 1A volts
1A is the maximum value

CDBM140-G Applications

There are a lot of Comchip Technology
CDBM140-G applications of single-phase diode rectifier.

DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
