TI CD74HCT283MT

Manufacturer No:

CD74HCT283MT

Manufacturer:

Package:

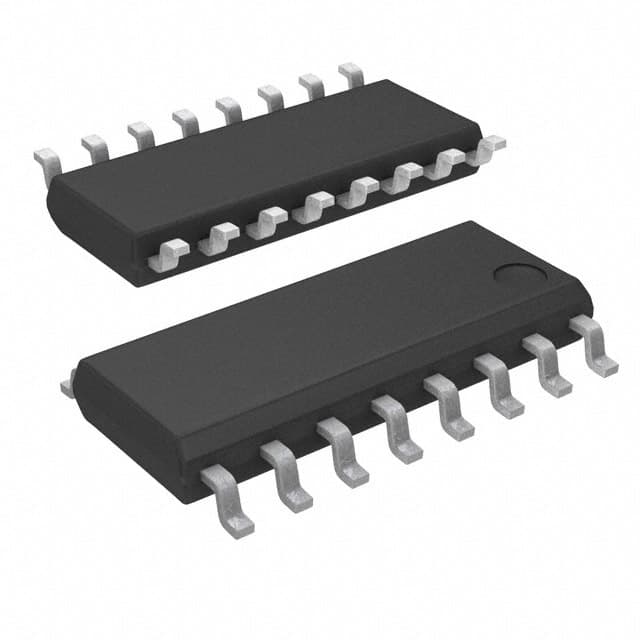

16-SOIC (0.154, 3.90mm Width)

Description:

4 Bit Binary Full Adder with Fast Carry 5V -55°C~125°C Specialty Logic IC 74HCT Series 74HCT283 16 Pin 4.5V~5.5V 16-SOIC (0.154, 3.90mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CD74HCT283MT information

TI CD74HCT283MT technical specifications, attributes, parameters and parts with similar specifications to TI CD74HCT283MT.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 2 days ago)

Factory Lead Time
6 Weeks

Contact Plating
Gold

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-SOIC (0.154, 3.90mm Width)

Number of Pins
16

Weight
141.690917mg

Operating Temperature
-55°C~125°C

Packaging
Tape & Reel (TR)

Series
74HCT

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

Termination
SMD/SMT

Additional Feature
WITH FULL INTERNAL LOOKAHEAD

Subcategory
Arithmetic Circuits

Packing Method
TR

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Supply Voltage
4.5V~5.5V

Base Part Number
74HCT283

Pin Count
16

Operating Supply Voltage
5V

Power Supplies
5V

Number of Channels
1

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Load Capacitance
50pF

Number of Bits
4

Propagation Delay
49 ns

Quiescent Current
8?A

Turn On Delay Time
80 ns

Family
HCT

Min Input Voltage
800mV

Logic Function
Binary Full Adder

Max Input Voltage
2V

Logic Type
Binary Full Adder with Fast Carry

Output Polarity
TRUE

Prop. Delay@Nom-Sup
60 ns

High Level Output Current
-4mA

Low Level Output Current
4mA

Power Supply Current-Max (ICC)
0.08mA

Download datasheets and manufacturer documentation for TI CD74HCT283MT.

CD74HCT283MT Overview

It is used to package items using Tape & Reel (TR).A package called 16-SOIC (0.154, 3.90mm Width) contains it.It is necessary to supply voltage 4.5V~5.5V to ensure that the device is capable of operating normally.As a type of electronic component, it uses the Surface Mount mounting method.It is set to operate at a temperature of -55°C~125°C.Information can be stored in the memory at the rate of 4 bits.Several similarities exist among electronic parts of the 74HCT series.Using the base part number 74HCT283, it is possible to locate a number of related parts.The total number of component pins equals 16.Using 16 terminations, signals are prevented from reverberating off the end of the transmission line.A Surface Mount mounting method is used.It is constructed using 16 pins.In normal conditions, the minimum voltage supply can be set to 4.5V.Keeping the maximum supply voltage at 5.5V will maintain normal operation.It can be categorized under Arithmetic Circuits.This device depends on the voltage of 5V supplied to it for operation.In order to ensure convenient operation, the power supplies of 5V should be maintained.As far as WITH FULL INTERNAL LOOKAHEAD is concerned, it provides high performance.In addition to being optimized for high quality and reliability, the electronic part belongs to the family of HCT.Packing is done with TR.A maximum power supply current of 0.08mA is maintained.Under no external circumstances, it consumes 8?A current.Transmitting data is done over 1 channels.

CD74HCT283MT Features

CD74HCT283MT Applications

There are a lot of Texas Instruments
CD74HCT283MT Specialty Logic ICs applications.

Cordless telephone
Desktop PC
Notebook
Pocket PC
Desktop radio
Clock radio
Tuner
Portable radio
Car radio
Satellite radio receiver
