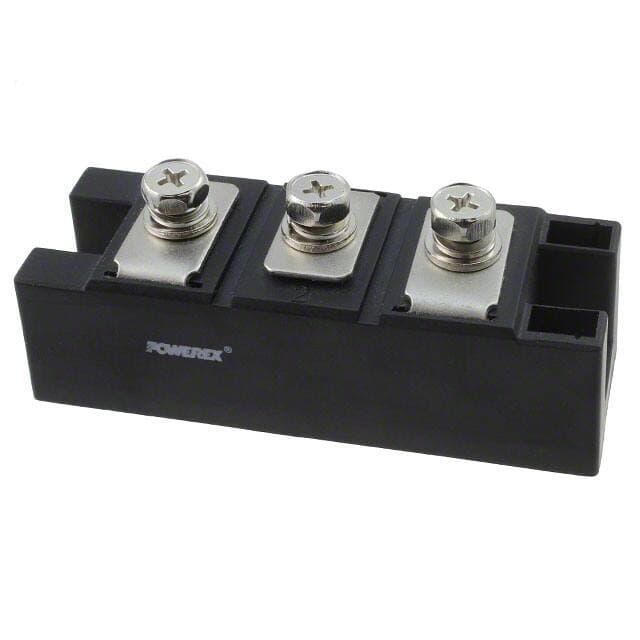

MITSUBISHI CD611616C
Manufacturer No:
CD611616C
Manufacturer:
Package:
Module
Description:
Standard Rectifier Diode 1 Pair Series Connection Standard Recovery >500ns, > 200mA (Io) -40°C~150°C 160A 1.6kV-DC 2-Element Module Screw Mount
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
CD611616C information
MITSUBISHI CD611616C technical specifications, attributes, parameters and parts with similar specifications to MITSUBISHI CD611616C.
- Type
- Parameter
- Factory Lead Time
- 18 Weeks
- Mount
- Screw
- Mounting Type
- Screw Mount
- Package / Case
- Module
- Diode Element Material
- SILICON
- Packaging
- Bulk
- Published
- 2011
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 3
- ECCN Code
- EAR99
- Additional Feature
- UL RECOGNIZED
- HTS Code
- 8541.10.00.80
- Terminal Position
- UPPER
- Terminal Form
- UNSPECIFIED
- Peak Reflow Temperature (Cel)
- NOT SPECIFIED
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- JESD-30 Code
- R-XUFM-X3
- Operating Temperature (Max)
- 150°C
- Number of Elements
- 2
- Speed
- Standard Recovery >500ns, > 200mA (Io)
- Diode Type
- Standard
- Current - Reverse Leakage @ Vr
- 12mA @ 1600V
- Case Connection
- ISOLATED
- Operating Temperature - Junction
- -40°C~150°C
- Application
- GENERAL PURPOSE
- Voltage - DC Reverse (Vr) (Max)
- 1600V
- Forward Voltage
- 1.56V
- Max Reverse Voltage (DC)
- 1.6kV
- Average Rectified Current
- 160A
- Number of Phases
- 1
- Max Repetitive Reverse Voltage (Vrrm)
- 1.6kV
- Diode Configuration
- 1 Pair Series Connection
- Reverse Current-Max
- 12000?A
- REACH SVHC
- Unknown
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for MITSUBISHI CD611616C.
Datasheets:
CD611616C Overview
A forward voltage monitoring system should be used and the forward voltage should never exceed 12000?A.When the forward voltage is set to 1.56V, this device will operate.When the forward voltage is set to 160A, this device will operate.
CD611616C Features
a forward voltage of 12000?A
a forward voltage of 12000?A
1.56V forward voltage
CD611616C Applications
There are a lot of Powerex Inc.
CD611616C applications of rectifier diode array.
- Rectifier for drives applications
- Crowbar applications
- Rectifiers for UBS
- Battery chargers
- Rectifiers in switch mode power supplies (SMPS)
- Free wheeling diode in low voltage converters
- General Rectification
