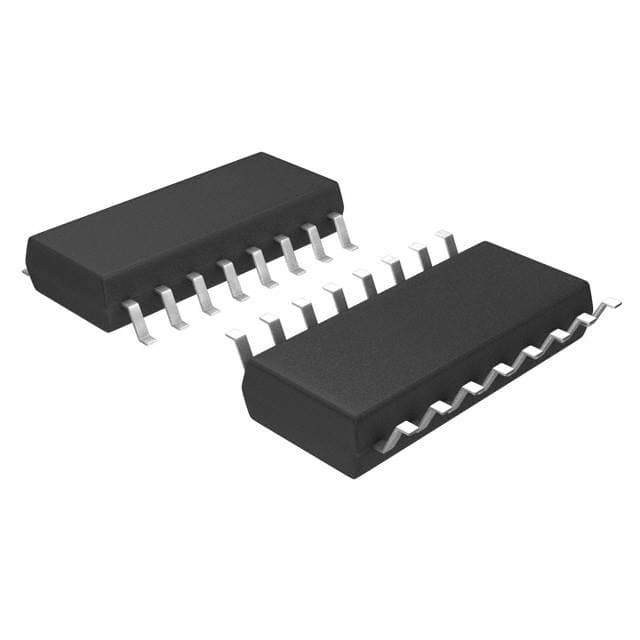

TI CD4543BNSRG4

Manufacturer No:

CD4543BNSRG4

Manufacturer:

Package:

SOP

Description:

DUAL 5V V Display Drivers ICs Tape and Reel

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CD4543BNSRG4 information

TI CD4543BNSRG4 technical specifications, attributes, parameters and parts with similar specifications to TI CD4543BNSRG4.

Type
Parameter

Contact Plating
Gold

Package / Case
SOP

Surface Mount
YES

Number of Pins
16

Weight
200.686274mg

Packaging
Tape and Reel

JESD-609 Code
e4

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

ECCN Code
EAR99

Max Operating Temperature
125°C

Min Operating Temperature
-55°C

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Pin Count
16

Number of Elements
1

Polarity
Non-Inverting

Temperature Grade
MILITARY

Max Supply Voltage
18V

Min Supply Voltage
3V

Propagation Delay
400 ns

Quiescent Current
100?A

Turn On Delay Time
1.2 ?s

Min Input Voltage
3V

Logic Function
Decoder, Demultiplexer

Bandwidth
8MHz

Logic IC Type
SEVEN SEGMENT DECODER/DRIVER

Display Type
LCD

High Level Output Current
-3.33mA

Low Level Output Current
4.2mA

Number of Input Lines
4

Number of Output Lines
7

Input Conditioning
LATCHED

Height Seated (Max)
2mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI CD4543BNSRG4.

CD4543BNSRG4 Overview

Similar to Tape and Reel, the package has been designed in a similar manner.Version SOP includes it.Its display type is LCD.The 16 termination is used to terminate transmission lines with impedance-matched devices.A 16 pin makes up the entire device.With 16 pins, it is designed.Powered by 5V, it has a voltage supply.For 40nA to function properly, it requires current supply.Drivers consists primarily of 1 elements.No matter what external influences are present, as long as 100?A of quiescent current is consumed.There is a recommendation that you should operate the machine at a temperature lower than 125°C.As for the logic IC it uses, it is a SEVEN SEGMENT DECODER/DRIVER-type.It is recommended that the operating temperature be greater than -55°C.

CD4543BNSRG4 Features

SOP package
16 pin count
16 pins
1 elements

CD4543BNSRG4 Applications

There are a lot of Texas Instruments
CD4543BNSRG4 display drivers applications.

Wal4 and table clocks
Industrial control panels
Portable lab instruments
Panel meters
Auto dashboard displays
Appliance control panels
Industrial Control Indicator
Relay Driver
Digital Clock, Thermometer, Counter, Voltmeter
Instrumentation Readouts
