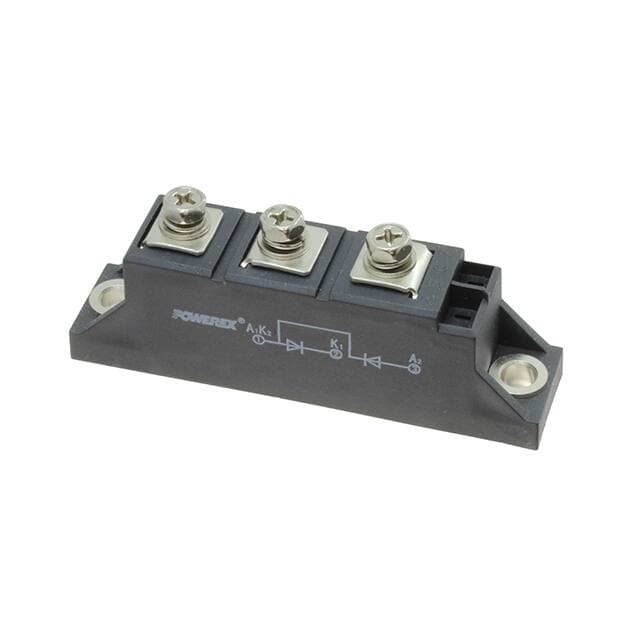

MITSUBISHI CD412499C

Manufacturer No:

CD412499C

Manufacturer:

MITSUBISHI

Package:

POW-R-BLOK? Module

Description:

Standard Rectifier Diode 1 Pair Series Connection Standard Recovery >500ns, > 200mA (Io) -40°C~150°C 2-Element POW-R-BLOK? Module Chassis Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CD412499C information

MITSUBISHI CD412499C technical specifications, attributes, parameters and parts with similar specifications to MITSUBISHI CD412499C.

Type
Parameter

Factory Lead Time
20 Weeks

Mounting Type
Chassis Mount

Package / Case
POW-R-BLOK? Module

Surface Mount
NO

Diode Element Material
SILICON

Published
2015

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Number of Terminations
3

ECCN Code
EAR99

Additional Feature
UL RECOGNIZED

HTS Code
8541.10.00.80

Terminal Position
UPPER

Terminal Form
UNSPECIFIED

JESD-30 Code
R-PUFM-X3

Operating Temperature (Max)
150°C

Number of Elements
2

Speed
Standard Recovery >500ns, > 200mA (Io)

Diode Type
Standard

Current - Reverse Leakage @ Vr
12mA @ 2400V

Voltage - Forward (Vf) (Max) @ If
1.65V @ 330A

Case Connection
ISOLATED

Operating Temperature - Junction
-40°C~150°C

Output Current-Max
100A

Voltage - DC Reverse (Vr) (Max)
2400V

Current - Average Rectified (Io)
100A

Number of Phases
1

Rep Pk Reverse Voltage-Max
2400V

Non-rep Pk Forward Current-Max
2600A

Diode Configuration
1 Pair Series Connection

Reverse Current-Max
12000?A

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for MITSUBISHI CD412499C.

Datasheets:

powerexinc-cd412099c-datasheets-5973.pdf

CD412499C Overview

The forward voltage should be monitored and should never exceed 12000?A.The maximum output voltage is 100A.

CD412499C Features

a forward voltage of 12000?A
a forward voltage of 12000?A
a maximum output voltage of 100A

CD412499C Applications

There are a lot of Powerex Inc.
CD412499C applications of rectifier diode array.

Rectifier for drives applications
Crowbar applications
Rectifiers for UBS
Battery chargers
Rectifiers in switch mode power supplies (SMPS)
Free wheeling diode in low voltage converters
General Rectification
