TI CC1100-RTY1
Manufacturer No:
CC1100-RTY1
Manufacturer:
Package:

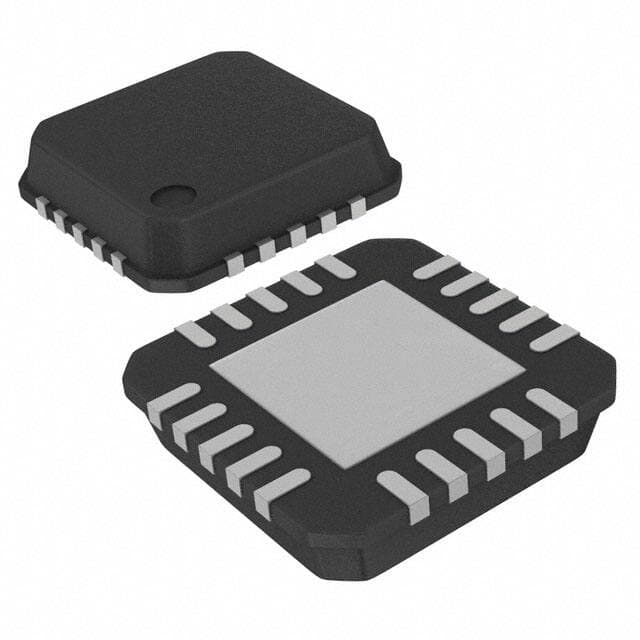

20-VFQFN Exposed Pad
Description:
TxRx Only 300MHz~348MHz 400MHz~464MHz 800MHz~928MHz 1.8V~3.6V SPI 500kBaud 13.9mA~15.9mA - Receiving 12.3mA~31.1mA - Transmitting 2FSK, ASK, GFSK, MSK, OOK 1 20-VFQFN Exposed Pad
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
CC1100-RTY1 information
TI CC1100-RTY1 technical specifications, attributes, parameters and parts with similar specifications to TI CC1100-RTY1.
| Type | Parameter |
|---|---|
| Lifecycle Status | NRND (Last Updated: 5 days ago) |
| Contact Plating | Tin |
| Mount | Surface Mount |
| Mounting Type | Surface Mount |
| Package / Case | 20-VFQFN Exposed Pad |
| Number of Pins | 20 |
| Operating Temperature | -40°C~85°C |
| Packaging | Tube |
| JESD-609 Code | e3 |
| Pbfree Code | yes |
| Part Status | Not For New Designs |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Number of Terminations | 20 |
| Termination | SMD/SMT |
| Type | TxRx Only |
| Subcategory | Other Telecom ICs |
| Technology | CMOS |
| Voltage - Supply | 1.8V~3.6V |
| Terminal Position | QUAD |
| Peak Reflow Temperature (Cel) | 260 |
| Number of Functions | 1 |
| Supply Voltage | 3V |
| Terminal Pitch | 0.5mm |
| Depth | 4mm |
| Type | Parameter |
|---|---|
| Base Part Number | CC1100 |
| Pin Count | 20 |
| Operating Supply Voltage | 3.3V |
| Bandwidth | 348.464928 THz |
| Power - Output | 10dBm |
| RF Family/Standard | General ISM < 1GHz |
| Data Rate (Max) | 500kBaud |
| Serial Interfaces | SPI |
| Current - Receiving | 13.9mA~15.9mA |
| Current - Transmitting | 12.3mA~31.1mA |
| Modulation | 2FSK, ASK, GFSK, MSK, OOK |
| Sensitivity (dBm) | -111 dBm |
| GPIO | 1 |
| Height | 900?m |
| Length | 4mm |
| Width | 4mm |
| Thickness | 850?m |
| REACH SVHC | No SVHC |
| Radiation Hardening | No |
| RoHS Status | ROHS3 Compliant |
| Lead Free | Lead Free |
