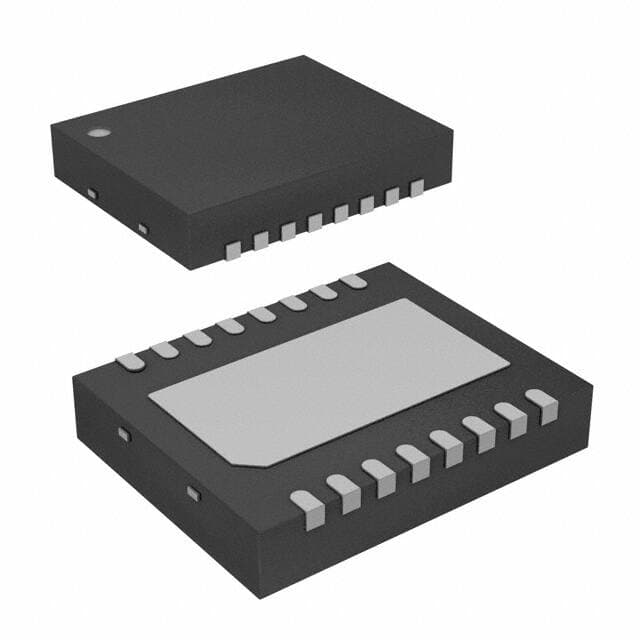

Cymbet Corporation CBC3105-R4C

Manufacturer No:

CBC3105-R4C

Manufacturer:

Cymbet Corporation

Package:

16-VFDFN Exposed Pad

Description:

16 Terminations 2.5V~5.5V Specialized Power Management ICs 1 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CBC3105-R4C information

Cymbet Corporation CBC3105-R4C technical specifications, attributes, parameters and parts with similar specifications to Cymbet Corporation CBC3105-R4C.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-VFDFN Exposed Pad

Operating Temperature
-20°C~70°C

Packaging
Tube

Series
EnerChip?

Published
2012

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
16

Termination
SMD/SMT

ECCN Code
EAR99

Applications
Energy Storage Device

HTS Code
8542.39.00.01

Voltage - Supply
2.5V~5.5V

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Reach Compliance Code
unknown

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
R-PDSO-N16

Supply Voltage-Max (Vsup)
5.5V

Supply Voltage-Min (Vsup)
2.5V

Number of Channels
1

Analog IC - Other Type
POWER SUPPLY MANAGEMENT CIRCUIT

Operating Supply Current
38?A

Adjustable Threshold
YES

Length
5mm

Height Seated (Max)
0.9mm

Width
4mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Cymbet Corporation CBC3105-R4C.

CBC3105-R4C Overview

It is acceptable to ship in the way of Tube .A convenient packaging is provided in the form of 16-VFDFN Exposed Pad .The Surface Mount mounting method allows for easy adaptation.It targets applications such as Energy Storage Device and others.It is recommended that the operating temperature of the power management ic be set to -20°C~70°C to prevent malfunctions.The power management operates at a voltage of 2.5V~5.5V volts.The power management has 16 terminals.As a POWER SUPPLY MANAGEMENT CIRCUIT analog IC, the instruments designs has received much praise.There is a Surface Mount for mounting on a PCB or other board.The power manager is supplied with 3.3V voltage and is capable of performing a wide range of demanding tasks.Voltage 38?A is required to operate this power management ic.A minimum of 2.5V is needed for it to start.To maintain the quality of the output, 1 channels work together.The power supply ic should not be supplied with voltage above 5.5V .It comes from EnerChip? .There is 3.3V voltage output from it.

CBC3105-R4C Features

Mainly used in Energy Storage Device applications
Operating temperature: -20°C~70°C
POWER SUPPLY MANAGEMENT CIRCUIT analog IC

CBC3105-R4C Applications

There are a lot of Cymbet Corporation
CBC3105-R4CPower Management applications.

Netbooks
SmartPhones
Portable Navigation Devices
Portable Media Players
Portable Systems
Hand-Held Systems
Space satellite point of load supply
Communications payload
Optical imaging payload
Desktop PC
