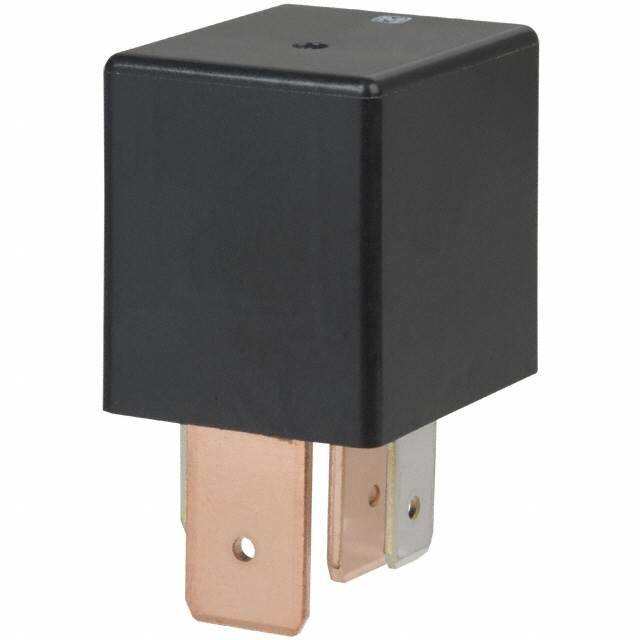

PANASONIC CB1AH-24V

Manufacturer No:

CB1AH-24V

Manufacturer:

PANASONIC

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CB1AH-24V information

PANASONIC CB1AH-24V technical specifications, attributes, parameters and parts with similar specifications to PANASONIC CB1AH-24V.

Type
Parameter

Factory Lead Time
16 Weeks

Contact Material
Silver Alloy, Cadmium Free

Mount
Plug-In, Socketable

Mounting Type
Socketable

Number of Pins
4

Weight
33g

Operating Temperature
-40°C~85°C

Packaging
Bulk

Series
CB

Published
2000

Feature
Sealed - Fully

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Quick Connect

ECCN Code
EAR99

Packing Method
BOX

Depth
22mm

Termination Style
Plug In, Quick Connect - Multiple Sizes

Physical Dimension
26.5mm x 22mm x 25.5mm

Sealing
EPOXY RESIN SEALED

Max Current Rating
20A

Electrical Life
50000 Cycle(s)

Throw Configuration
SPST

Contact Form
SPST-NO (1 Form A)

Relay Type
Automotive

Coil Resistance
320Ohm

Operate Time
15ms

Coil Voltage
24VDC

Coil Type
Non Latching

Switching Voltage
28VDC - Nom

Coil Current
75mA

Release Time
15 ms

Must Operate Voltage
14VDC

Contact Rating (Current)
70A

Power Consumption
1.8W

Coil Power
1800mW

Must Release Voltage
2.4VDC

Contact/Output Supply Type
DC

Relay Action
MOMENTARY

Coil Voltage (DC)
24V

Coil/Input Supply Type
DC

Height
25.5mm

Length
26mm

Width
26.5mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for PANASONIC CB1AH-24V.

Datasheets:

panasonicelectricworks-cb1am12v-datasheets-8204.pdf

User Guide
