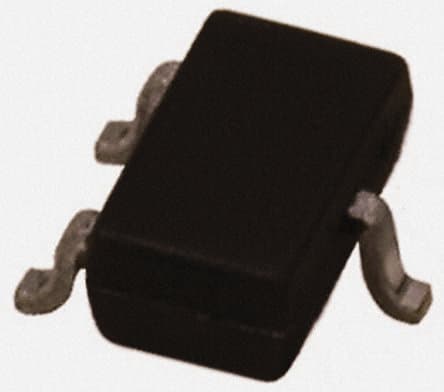

ONSEMI CAT824YSDI-GT3

Manufacturer No:

CAT824YSDI-GT3

Manufacturer:

ONSEMI

Package:

Description:

2.5V 5 Terminals 5-Pin Voltage supervisor 1 Channels Min 1.2V Max 5.5V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CAT824YSDI-GT3 information

ONSEMI CAT824YSDI-GT3 technical specifications, attributes, parameters and parts with similar specifications to ONSEMI CAT824YSDI-GT3.

Type
Parameter

Lifecycle Status
LAST SHIPMENTS (Last Updated: 1 week ago)

Mount
Surface Mount

Package / Case
SC

Number of Pins
5

Published
2008

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Power Management Circuits

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
2.5V

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
5

Temperature Grade
INDUSTRIAL

Number of Channels
1

Min Supply Voltage
1.2V

Analog IC - Other Type
POWER SUPPLY MANAGEMENT CIRCUIT

Power Dissipation-Max
247mW

Operating Supply Current
4?A

Adjustable Threshold
NO

Watchdog Timer
Yes

Number of Voltages Monitored
1

Halogen Free
Halogen Free

Min Reset Threshold Voltage
2.13V

Max Reset Threshold Voltage
2.25V

Undervoltage Threshold
2.19V

Height
1mm

Length
2.2mm

Width
1.35mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ONSEMI CAT824YSDI-GT3.

Datasheets:

onsemiconductor-cat824ysdigt3-datasheets-1583.pdf

CAT824YSDI-GT3 Overview

As far as the mounting terminals of this voltage supervisor are concerned, it has 5 in total. In this IC power you will find 1 functions for you to refer to. Depending on the power managment ic you are looking at, you can find a total of 1 channels. In this IC management you will find SC functions for you to refer to. In order to ensure a good reflow performance, the package peak reflow temperature must be set at 260. A supply voltage of 2.5V is used to conduct the PMIC chip. A supply voltage of 1 is used to conduct the PMIC chip. Surface Mount is the one that mounts power management. There is a subcategory called Power Management Circuits for this power management. In total, the power management has 5 pins in it. This power management system has 5 pins. A voltage (Vsup) that doesn't fall below 1.2V as the minimum supply voltage (Vsup) should be applied to this IC power in order to ensure its proper operation. The supply voltage (Vsup) should not exceed 5.5V volts in this IC power. In order to maintain a stable supply current for the power management, 4?A is the recommended value. Besides the IC types mentioned above, the power management system also includes other types such as POWER SUPPLY MANAGEMENT CIRCUIT.

CAT824YSDI-GT3 Features

Minimum supply voltage of 1.2V
4?A operating supply current

CAT824YSDI-GT3 Applications

There are a lot of ON Semiconductor
CAT824YSDI-GT3 Voltage Supervisors applications.

External alarm
Display equipment
DC stabilized power supply module
Insulation fault location system
Magnetic resonance imaging
Stable power system
Sensitive sensors
Efficient information transmission
Functional modules
Consumer electronics
