Manufacturer No:

CAT4137TD-GT3

Manufacturer:

ONSEMI

Package:

SOT-23-5 Thin, TSOT-23-5

Description:

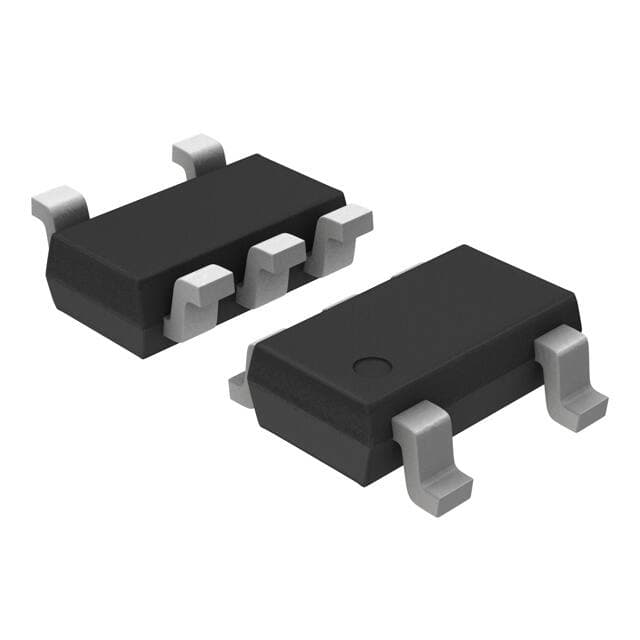

3.6V Gold PMIC CAT4137 5 Pin 3.6V SOT-23-5 Thin, TSOT-23-5

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CAT4137TD-GT3 information

ONSEMI CAT4137TD-GT3 technical specifications, attributes, parameters and parts with similar specifications to ONSEMI CAT4137TD-GT3.

  • Type
  • Parameter
  • Factory Lead Time
  • 9 Weeks
  • Lifecycle Status
  • ACTIVE (Last Updated: 8 hours ago)
  • Contact Plating
  • Gold
  • Package / Case
  • SOT-23-5 Thin, TSOT-23-5
  • Mounting Type
  • Surface Mount
  • Mount
  • Surface Mount
  • Number of Pins
  • 5
  • Published
  • 2008
  • Packaging
  • Tape & Reel (TR)
  • Operating Temperature
  • -40°C~85°C TA
  • JESD-609 Code
  • e4
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 5
  • ECCN Code
  • EAR99
  • Type
  • DC DC Regulator
  • Applications
  • Backlight
  • Subcategory
  • Display Drivers
  • Technology
  • CMOS
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Base Part Number
  • CAT4137
  • Pin Count
  • 5
  • Number of Outputs
  • 1
  • Power Supplies
  • 3.6V
  • Max Supply Voltage
  • 5.5V
  • Min Supply Voltage
  • 2.2V
  • Output Current
  • 30mA
  • Max Supply Current
  • 1.5mA
  • Voltage - Output
  • 24V
  • Topology
  • Step-Up (Boost)
  • Min Input Voltage
  • 2.2V
  • Max Input Voltage
  • 5.5V
  • Halogen Free
  • Halogen Free
  • Output Current per Channel
  • 30mA
  • Internal Switch(s)
  • Yes
  • High Level Output Current
  • 30mA
  • Dimming
  • Analog, PWM
  • Number of Segments
  • 3
  • Switching Frequency
  • 1MHz
  • Multiplexed Display Capability
  • NO
  • Width
  • 2.8mm
  • Length
  • 2.9mm

Download datasheets and manufacturer documentation for ONSEMI CAT4137TD-GT3.

Datasheets:

PCN Packaging:

CAT4137TD-GT3 Overview


In order to save board space, the SOT-23-5 Thin, TSOT-23-5 package is used. A LED driver using this design has 1 outputs.As a mounting method, Surface Mount is used.It emerges as a DC DC Regulator with high efficiency.It is possible for the led driver ic to operate normally at -40°C~85°C TA.The benefits of Backlight are considerable.For its operation, terminations with a value of 0 are used.A configuration of this chip is made up of 5 pins.A total of 3 segments have been created.It's mounted in Surface Mount.Part number CAT4137 represents this LED driver.It is acceptable to supply voltages of 5.5V.24V is the output voltage.In addition, it has 5 pins.Depending on its characteristics, it is classified into Display Drivers.With a minimum input voltage of 2.2V volts, it can operate.For highest efficiency, it works with a minimal supply voltage of 2.2V.In terms of supply current, 5.5V is the maximum value.A minimal supply current is required in order for this device to provide high efficiency.Loads can only be powered by 30mA current.As long as the switching frequency is maintained at 1MHz, this electronic component is able to perform all of its functions properly.
