ONSEMI CAT4106YP-T2
ONSEMI CAT4106YP-T2

ONSEMI CAT4106YP-T2

Manufacturer No:

CAT4106YP-T2

Manufacturer:

ONSEMI

Package:

16-TSSOP (0.173, 4.40mm Width) Exposed Pad

Description:

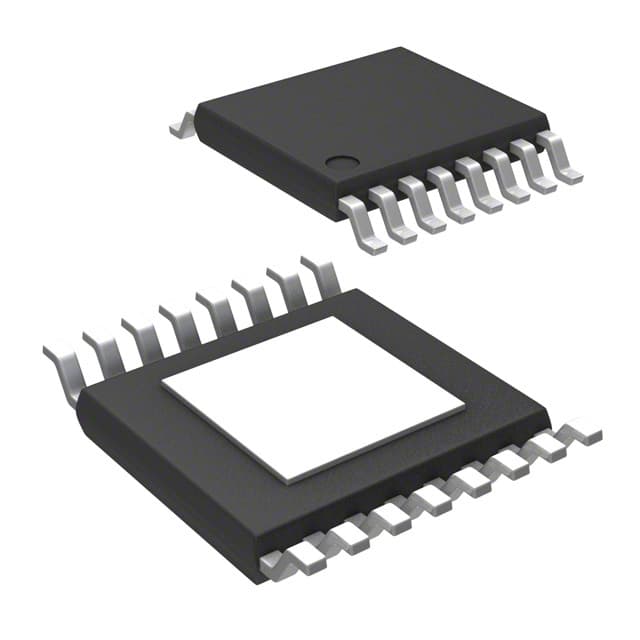

3.3/5V 0.65mm Tin PMIC CAT4106 16 Pin 5V 16-TSSOP (0.173, 4.40mm Width) Exposed Pad

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CAT4106YP-T2 information

ONSEMI CAT4106YP-T2 technical specifications, attributes, parameters and parts with similar specifications to ONSEMI CAT4106YP-T2.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 1 day ago)
  • Factory Lead Time
  • 6 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 16-TSSOP (0.173, 4.40mm Width) Exposed Pad
  • Number of Pins
  • 16
  • Operating Temperature
  • -40°C~85°C TA
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2009
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 16
  • ECCN Code
  • EAR99
  • Type
  • DC DC Regulator
  • Applications
  • Backlight, Lighting
  • Subcategory
  • Display Drivers
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Supply Voltage
  • 5V
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Base Part Number
  • CAT4106
  • Pin Count
  • 16
  • Number of Outputs
  • 4
  • Power Supplies
  • 3.3/5V
  • Max Supply Voltage
  • 5.5V
  • Min Supply Voltage
  • 3V
  • Output Current
  • 175mA
  • Max Supply Current
  • 4.4mA
  • Voltage - Output
  • 36V
  • Topology
  • Step-Up (Boost)
  • Min Input Voltage
  • 3V
  • Max Input Voltage
  • 5.5V
  • Halogen Free
  • Halogen Free
  • Output Current per Channel
  • 175mA
  • Internal Switch(s)
  • Yes
  • High Level Output Current
  • 175mA
  • Low Level Output Current
  • 10mA
  • Dimming
  • PWM
  • Number of Segments
  • 4
  • Switching Frequency
  • 1MHz
  • Multiplexed Display Capability
  • NO
  • Length
  • 5mm

Download datasheets and manufacturer documentation for ONSEMI CAT4106YP-T2.

Datasheets:

CAT4106YP-T2 Description


The CAT4106YP-T2 is an integrated multi?channel LED driver and high-power DC/DC converter suitable for powering backlighting applications up to a total of 6 watts.



CAT4106YP-T2 Features


  • Four LED Channels with Tight Current Matching

  • Integrated DC/DC Boost Converter

  • Up to 6 W LED Total Output Power

  • Up to 92% Efficiency

  • Low Dropout LED Channels (500 mV at 175 mA)

  • High-Frequency PWM Interface (up to 2 kHz)

  • Adjustable Short/Open LED Detection

  • Programmable LED Channel Current

  • Adjustable LED Channel Voltage

  • Thermal Shutdown Protection

  • 16?lead TQFN 4 x 4 mm and TSSOP Packages

  • These Devices are Pb?Free, Halogen Free/BFR Free and RoHS Compliant



CAT4106YP-T2 Applications


  • LCD Backlight Lighting

  • Automotive and General Purpose Lighting
