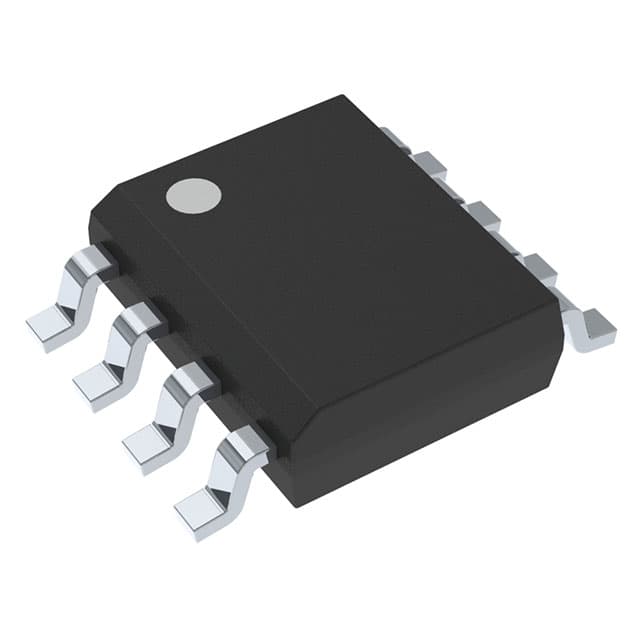

ONSEMI CAT24C128WI-GT3
ONSEMI CAT24C128WI-GT3

ONSEMI CAT24C128WI-GT3

Manufacturer No:

CAT24C128WI-GT3

Manufacturer:

ONSEMI

Package:

8-SOIC (0.154, 3.90mm Width)

Description:

EEPROM Serial 128-Kb I<sup>2</sup>C

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CAT24C128WI-GT3 information

ONSEMI CAT24C128WI-GT3 technical specifications, attributes, parameters and parts with similar specifications to ONSEMI CAT24C128WI-GT3.

  • Type
  • Parameter
  • Specific Features
  • -
  • MSL Type
  • 1
  • MSL Temp (°C)
  • 260
  • T Max (°C)
  • 85
  • Container Qty.
  • 3000
  • Organization
  • 16k x 8
  • Data Transmission Standard
  • I2C
  • VCC Min (V)
  • 1.8
  • Istandby Max (µA)
  • 1
  • Package Type
  • SOIC-8
  • Case Outline
  • 751BD
  • Container Type
  • REEL
  • T Min (°C)
  • -40
  • Endurance (Write cycles)
  • -
  • VCC Max (V)
  • 5.5
  • Vio Ref (V)
  • -
  • Iact Max (mA)
  • 1
  • tACC Max ns
  • -
  • Type
  • Serial
  • Density
  • 128 kb
  • fcycle Max (kHz)
  • 400

Download datasheets and manufacturer documentation for ONSEMI CAT24C128WI-GT3.

Datasheet:

Package Drawing:

The CAT24C128 is a EEPROM Serial 128-Kb I2C, internally organized as 16,384 words of 8 bits each.It features a 64-byte page write buffer and supports both the Standard (100 kHz), Fast (400 kHz) and Fast-Plus (1 MHz) I2C protocol.Write operations can be inhibited by taking the WP pin High (this protects the entire memory).On-Chip ECC (Error Correction Code) makes the device suitable for high reliability applications.

Application

  • Alarm Systems
  • Audio Players
  • Automotive Systems
  • Cable Modems
  • CDRW
  • Cellular Phones
  • Cordless Phones
  • CRT/LCD Monitors
  • Digital Still Cameras
  • DRAM Modules
  • DVD Players
  • Graphic Cards
  • Hard Disk Drives
  • Health Meters
  • Industrial Controls
  • Internet Phone Handsets
  • Memory Modules
  • Notebook PC
  • Personal Computers
  • Printers
  • Set Top Box
  • Smart Phones
  • TV
  • Telecommunications
  • Two Way Radios
  • Video Games
  • Video Tape Recorder
  • Vending Machines
  • Wireless LANs

Feature

  • Supports Standard, Fast and Fast-Plus I2C Protocol
  • 1.8 V to 5.5 V Supply Voltage Range
  • 64-Byte Page Write Buffer
  • Hardware Write Protection for Entire Memory
  • Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs (SCL and SDA)
  • Low Power CMOS Technology
  • 1,000,000 Program/Erase Cycles
  • Industrial Temperature Range
  • 100 Year Data Retention
  • 8-lead SOIC and TSSOP and 8-pad UDFN packages
  • This Device is Pb-Free, Halogen Free/BFR Free and RoHS Compliant
