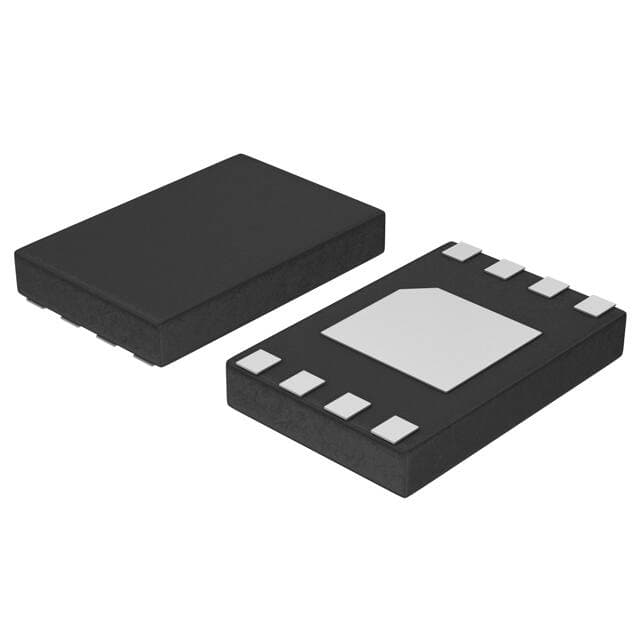

ONSEMI CAT24C02HU4IGT3A
Manufacturer No:
CAT24C02HU4IGT3A
Manufacturer:
Package:
8-UFDFN Exposed Pad
Description:
Surface Mount 8 Pin Memory IC CAT24C02 2 kb kb 3mm mm 2mA mA
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
CAT24C02HU4IGT3A information
ONSEMI CAT24C02HU4IGT3A technical specifications, attributes, parameters and parts with similar specifications to ONSEMI CAT24C02HU4IGT3A.
- Type
- Parameter
- Contact Plating
- Gold
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 8-UFDFN Exposed Pad
- Number of Pins
- 8
- Operating Temperature
- -40°C~85°C TA
- Packaging
- Tape & Reel (TR)
- Published
- 2004
- JESD-609 Code
- e4
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 8
- Technology
- CMOS
- Voltage - Supply
- 1.7V~5.5V
- Terminal Position
- DUAL
- Number of Functions
- 1
- Supply Voltage
- 3.3V
- Terminal Pitch
- 0.5mm
- Base Part Number
- CAT24C02
- Pin Count
- 8
- Supply Voltage-Max (Vsup)
- 5.5V
- Supply Voltage-Min (Vsup)
- 1.7V
- Interface
- 2-Wire, I2C, Serial
- Memory Size
- 2Kb 256 x 8
- Memory Type
- Non-Volatile
- Clock Frequency
- 400kHz
- Access Time
- 900ns
- Memory Format
- EEPROM
- Memory Interface
- I2C
- Organization
- 2KX1
- Halogen Free
- Halogen Free
- Memory Width
- 1
- Write Cycle Time - Word, Page
- 5ms
- Density
- 2 kb
- Standby Current-Max
- 0.000001A
- Serial Bus Type
- I2C
- Endurance
- 1000000 Write/Erase Cycles
- Write Cycle Time-Max (tWC)
- 5ms
- Data Retention Time-Min
- 100
- Write Protection
- HARDWARE
- I2C Control Byte
- 1010DDDR
- Length
- 3mm
- Height Seated (Max)
- 0.55mm
- Width
- 2mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for ONSEMI CAT24C02HU4IGT3A.
PCN Packaging:
CAT24C02HU4IGT3A Overview
As far as memory types are concerned, Non-Volatile is considered to be its memory type. In addition, memory ics is available in a Tape & Reel (TR) case as well. In the case of 8-UFDFN Exposed Pad, it is embedded within the case. A memory chip with a capacity of 2Kb 256 x 8 is used on this device. There is a mainstream memory format used by this device, which is called EEPROM-format memory. This device has an extended operating temperature range of -40°C~85°C TA, so it's perfect for a wide range of demanding applications. It is capable of handling a voltage supply of 1.7V~5.5V. As far as the mounting type is concerned, Surface Mount is recommended. On the chip, there are 8 terminations that are planted. The part supports at least 1 functions to ensure a comprehensive working process. In order to function properly, this ic memory chip should be powered by a voltage of 3.3V. In the memory, there is a clock frequency rotation that ranges 400kHz. In order to select similar parts, typical manufacturers refer to CAT24C02 as the device's base part number. The memory device has an 8-pin package, which encloses it in a small package. I have noticed that the memory device has 8 pins, which indicates that it has 8 locations in the memory. In this chip, the Surface Mount mounting method is used, a straightforward, high-efficiency mounting method. In terms of its nominal supply current, this memory component has a rating of 2mA. The I2C-type serial bus this memory integrates with is helpful for transferring data to the CPU.
CAT24C02HU4IGT3A Features
Package / Case: 8-UFDFN Exposed Pad
8 Pins
CAT24C02HU4IGT3A Applications
There are a lot of ON Semiconductor
CAT24C02HU4IGT3A Memory applications.
- servers
- supercomputers
- telecommunications
- workstations,
- DVD disk buffer
- data buffer
- nonvolatile BIOS memory
- Camcorders
- embedded logic
- eDRAM
