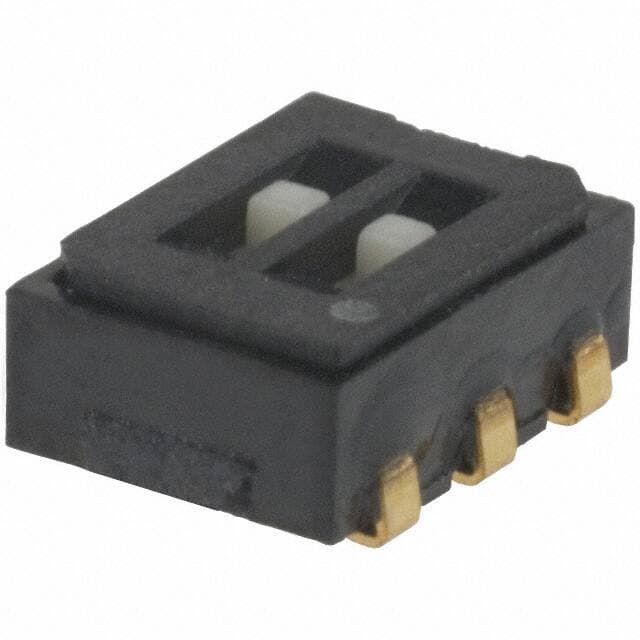

Nidec Copal CAS-D20TA

Manufacturer No:

CAS-D20TA

Manufacturer:

Nidec Copal

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CAS-D20TA information

Nidec Copal CAS-D20TA technical specifications, attributes, parameters and parts with similar specifications to Nidec Copal CAS-D20TA.

Type
Parameter

Factory Lead Time
11 Weeks

Contact Material
Copper Alloy

Contact Plating
Gold

Mount
Surface Mount

Mounting Type
Surface Mount

Body Material
Polyphenylene

Actuator Material
Polyamide (PA), Nylon

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Series
CAS

Published
2006

Feature
Tape Seal

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
J-Hook

Number of Positions
2

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Voltage - Rated DC
6V

Current Rating (Amps)
100mA DC

Pitch
1.7272mm

Orientation
Vertical

Current Rating
100mA

Contact Finish
Gold

Actuator Type
Flush

Circuit
SPDT x 2

Switch Function
On-On

Electrical Life
2,000 Cycles

Throw Configuration
DPDT, SPDT

Max Voltage Rating (DC)
24V

Contact Current Rating
100mA

Operating Force
51 ~ 510gf

Contact Timing
Not Specified

Switch Travel
0.60mm

Washable
Yes

Length
5.3848mm

Actuator Length
Flush

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Nidec Copal CAS-D20TA.

Datasheets:

nideccopalelectronics-casd20tb-datasheets-4880.pdf

CAS-D20TA Description

CAS-D20TA developed by Nidec Copal Electronics is a type of slide switch which is a switch with a contact on the handle of the button, and the position of the sliding point is used to make the moving contact piece contact with the two sets of static contact pieces to switch the circuit. Its static contact piece and moving contact piece are located on the insulating seat and the twist handle respectively. Its application is affected by various factors such as airflow, pressure difference, voltage, fluid rebound, installation method, direction, etc., thus it is generally used in low-voltage circuits. Because of its small size, high sensitivity of the slider, accurate switching point, stability and reliability, it is widely used in various instruments and electronic products such as fax machines, multi-function telephones, radios, electric toys, etc.

CAS-D20TA Features

Compatible with most automatic pick & place machinery

Compact and space saving SMD type

Excellent contact stability by twin Gold-plated contact

Rated current: 100 mA

Temperature range: -40?~+85?

CAS-D20TA Applications

Fax machines

Multi-function telephones

Radios

Electric toys
