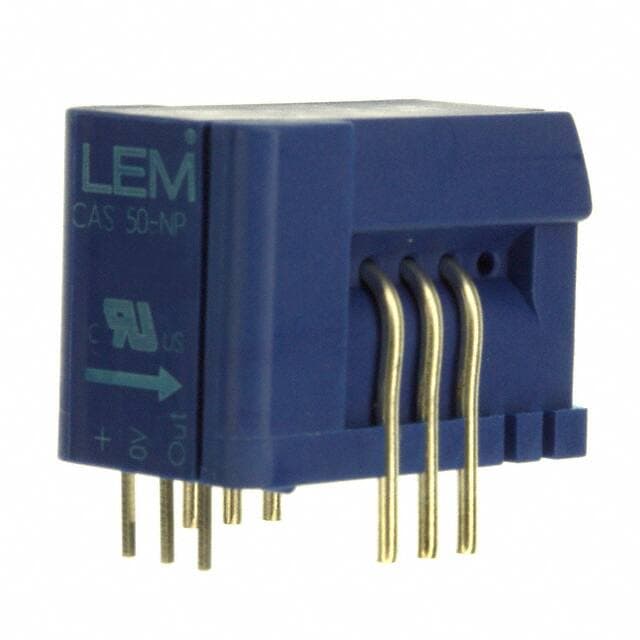

LEM CAS 50-NP

Manufacturer No:

CAS 50-NP

Manufacturer:

LEM

Package:

Module

Description:

CAS Series Flux Gate, Closed Loop Sensor 1-Channel Bidirectional -40°C~85°C 4.75V~5.25V 300kHz 50A Accuracy-±0.8% Linearity-±1%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CAS 50-NP information

LEM CAS 50-NP technical specifications, attributes, parameters and parts with similar specifications to LEM CAS 50-NP.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Through Hole

Package / Case
Module

Surface Mount
NO

Operating Temperature
-40°C~85°C

Packaging
Tube

Series
CAS

Published
2009

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Number of Terminations
10

Voltage - Supply
4.75V~5.25V

Terminal Position
UNSPECIFIED

Terminal Form
PIN/PEG

Number of Functions
1

Supply Voltage
5V

Frequency
300kHz

Output
Ratiometric, Voltage

Current - Supply (Max)
20mA

Supply Voltage-Max (Vsup)
5.25V

Supply Voltage-Min (Vsup)
4.75V

Number of Channels
1

Analog IC - Other Type
ANALOG CIRCUIT

Polarization
Bidirectional

Response Time
0.3μs

Sensor Type
Flux Gate, Closed Loop

Linearity
±1%

Sensitivity
12.5mV/A

For Measuring
AC/DC

Current - Sensing
50A

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for LEM CAS 50-NP.

Datasheets:

lemusainc-cas6np-datasheets-1637.pdf

CAS 50-NP Overview

A Module package is used to protect the current sensors from damage. The devices are protected from damage by the Tube package. It is recommended that these current sensors supply a maximum current of 20mA. Current sensors terminate at 10. The current sensors are capable of supplying voltages of 5V while they are working. It is recommended that current sensors supply a minimum voltage of 4.75V. However, current sensors should not supply more voltage than 5.25V.

CAS 50-NP Features

Moisture Sensitivity Level: Not Applicable
Operating Temperature: -40°C~85°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Flux Gate, Closed Loop
Supply Voltage: 4.75V~5.25V
Frequency: 300kHz
Sensing Current: 50A
Module Package

CAS 50-NP Applications

There are a lot of LEM USA Inc.
CAS 50-NP Current Sensors applications.

Power factor correction
Overcurrent protection
DC and AC power monitoring
Closed-L oop DC- and AC-Current Sensor Modules
Leakage Current Sensors
Industrial Monitoring and Control Systems
Overcurrent Detection
Frequency, Voltage, and Solar Inverters
Electrical drives
General purpose inverters
