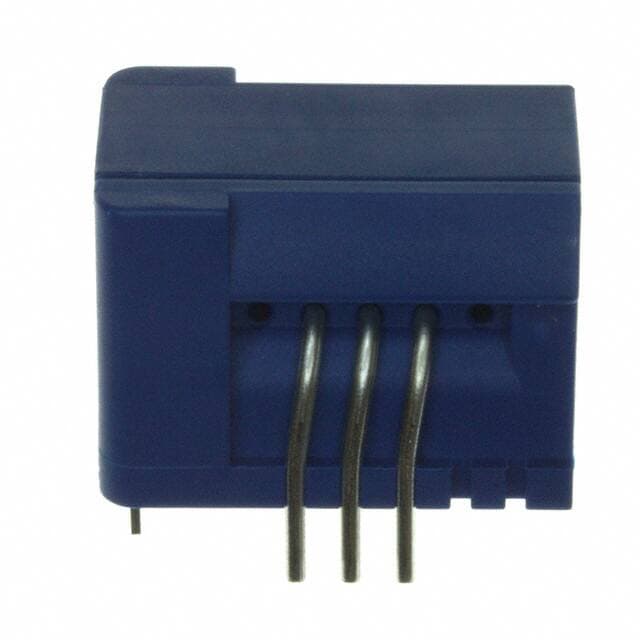

LEM CAS 25-NP

Manufacturer No:

CAS 25-NP

Manufacturer:

LEM

Package:

Module

Description:

CAS Series Flux Gate, Closed Loop Sensor 1-Channel Bidirectional -40°C~85°C 4.75V~5.25V 300kHz 25A Accuracy-±0.8% Linearity-±1%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CAS 25-NP information

LEM CAS 25-NP technical specifications, attributes, parameters and parts with similar specifications to LEM CAS 25-NP.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Through Hole

Package / Case
Module

Surface Mount
NO

Operating Temperature
-40°C~85°C

Packaging
Tray

Series
CAS

Published
2004

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Number of Terminations
10

Voltage - Supply
4.75V~5.25V

Terminal Position
UNSPECIFIED

Terminal Form
PIN/PEG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
5V

Frequency
300kHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Output
Ratiometric, Voltage

Current - Supply (Max)
20mA

Supply Voltage-Max (Vsup)
5.25V

Supply Voltage-Min (Vsup)
4.75V

Number of Channels
1

Polarization
Bidirectional

Accuracy
±0.8%

Response Time
0.3μs

Sensor Type
Flux Gate, Closed Loop

Linearity
±1%

Sensitivity
25mV/A

For Measuring
AC/DC

Current - Sensing
25A

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for LEM CAS 25-NP.

Datasheets:

lemusainc-cas6np-datasheets-1637.pdf

CAS 25-NP Overview

Safety measures are taken to protect the current sensors by putting them in Module packages. For protection, these sensors are packaged in the Tray. Current sensors should only output 20mA current. Currently, the current sensors are terminated with 10. As they work, these current sensors can supply voltages of 5V. Current sensors must supply 4.75V as their minimum voltage. Nevertheless, current sensors should not supply voltages higher than 5.25V.

CAS 25-NP Features

Moisture Sensitivity Level: Not Applicable
Operating Temperature: -40°C~85°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Flux Gate, Closed Loop
Supply Voltage: 4.75V~5.25V
Frequency: 300kHz
Sensing Current: 25A
Module Package

CAS 25-NP Applications

There are a lot of LEM USA Inc.
CAS 25-NP Current Sensors applications.

Overcurrent Detection
Frequency, Voltage, and Solar Inverters
Electrical drives
General purpose inverters
AC variable speed drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies(UPS)
Switched Mode Power Supplies(SMPS)
Power supplies for welding applications
