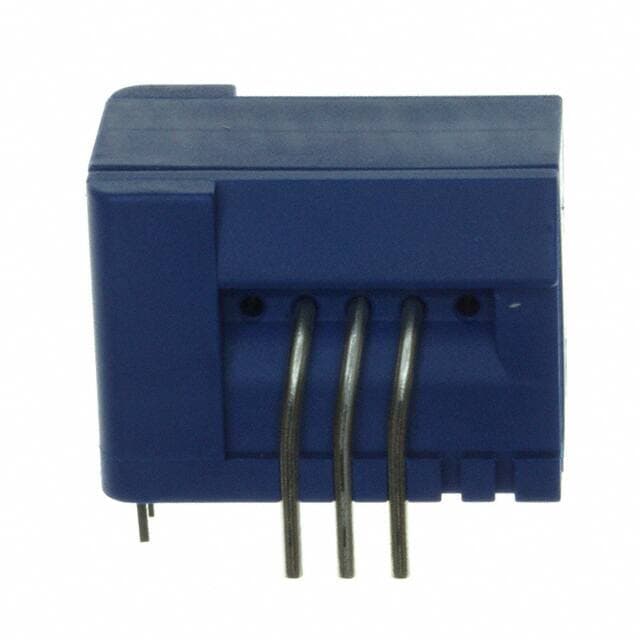

LEM CAS 15-NP

Manufacturer No:

CAS 15-NP

Manufacturer:

LEM

Package:

Module

Description:

CAS Series Flux Gate, Closed Loop Sensor 1-Channel Bidirectional -40°C~85°C 4.75V~5.25V 300kHz 15A Accuracy-±0.8% Linearity-±1%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CAS 15-NP information

LEM CAS 15-NP technical specifications, attributes, parameters and parts with similar specifications to LEM CAS 15-NP.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Through Hole

Package / Case
Module

Surface Mount
NO

Operating Temperature
-40°C~85°C

Packaging
Tray

Series
CAS

Published
2004

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Number of Terminations
10

Voltage - Supply
4.75V~5.25V

Terminal Position
UNSPECIFIED

Terminal Form
PIN/PEG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
5V

Frequency
300kHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Output
Ratiometric, Voltage

Current - Supply (Max)
20mA

Supply Voltage-Max (Vsup)
5.25V

Supply Voltage-Min (Vsup)
4.75V

Number of Channels
1

Polarization
Bidirectional

Accuracy
±0.8%

Response Time
0.3μs

Sensor Type
Flux Gate, Closed Loop

Linearity
±1%

Sensitivity
41.67mV/A

For Measuring
AC/DC

Current - Sensing
15A

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for LEM CAS 15-NP.

Datasheets:

lemusainc-cas6np-datasheets-1637.pdf

CAS 15-NP Overview

The current sensors are put into Module packages for safety protection. These current sensors are packaged in the Tray to protect the devices from damage. The maximum current supplied by these current sensors should be 20mA. The current sensors have 10 terminations. These current sensors can supply a voltage of 5V while working. The minimum voltage supplied by current sensors should be set to 4.75V. But the voltage supplied by current sensors should not exceed 5.25V.

CAS 15-NP Features

Moisture Sensitivity Level: Not Applicable
Operating Temperature: -40°C~85°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Flux Gate, Closed Loop
Supply Voltage: 4.75V~5.25V
Frequency: 300kHz
Sensing Current: 15A
Module Package

CAS 15-NP Applications

There are a lot of LEM USA Inc.
CAS 15-NP Current Sensors applications.

Motor and load control
Inverter and H-bridge current measurements
Power factor correction
Overcurrent protection
DC and AC power monitoring
Closed-L oop DC- and AC-Current Sensor Modules
Leakage Current Sensors
Industrial Monitoring and Control Systems
Overcurrent Detection
Frequency, Voltage, and Solar Inverters
