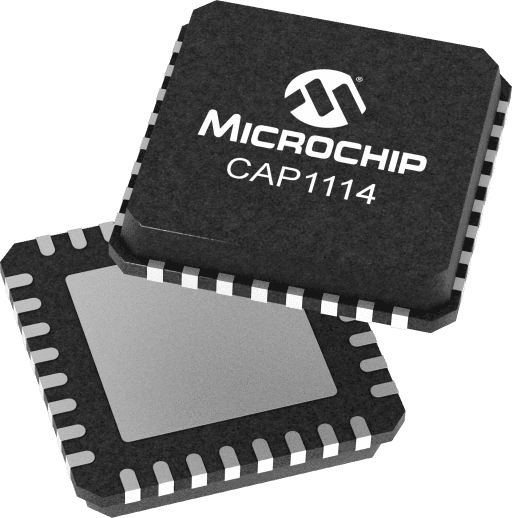

Microchip CAP1114-1-EZK-TR

Manufacturer No:

CAP1114-1-EZK-TR

Manufacturer:

Microchip

Package:

32-TFQFN Exposed Pad

Description:

14 Channel Capacitive Touch Sensor with 11 LED Drivers

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CAP1114-1-EZK-TR information

Microchip CAP1114-1-EZK-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip CAP1114-1-EZK-TR.

Type
Parameter

Product Type
Proximity/Keys/Slider

Input Channels
14

Number of Keys Max
14

Slider
Yes

Proximity detection
Yes

Output Channels
0

Measurement Principle
Self Capacitance

Report Rate (pps)
0

Number of Touches
0

Power Modes
3

Interface
I2C

I/O, LED Drivers
11

Temp Range
0°C to 85°C

Voltage Min. (V)
3.00

Voltage Max. (V)
3.60

Download datasheets and manufacturer documentation for Microchip CAP1114-1-EZK-TR.

The CAP1114 is a turnkey capacitive touch controller providing a wide variety of button and slider functionality, and making it easy for designers to add
aesthetically pleasing, low-cost and robust touch interfaces.

The CAP1114 also contains 11 LED drivers that offer full-on / off, variable rate blinking, dimness controls, and breathing. Each of the LED drivers may be linked to one of the sensor inputs to be actuated when a touch is detected. As well, each LED driver may be individually controlled via a host controller.

It also can implement a slider with acceleration and position detection

14 Capacitive Touch Sensor inputs
11 LED Driver Outputs
Slider with acceleration and position detection
Programmable sensitivity
Automatic recalibration
Low Power operations
8kV protection
I²C™ and SMBus
3.0 V - 3.6 V
32-pin QFN

User Guide
