ROHM BV1LB045FPJ-CE1

Manufacturer No:

BV1LB045FPJ-CE1

Manufacturer:

ROHM

Package:

SOP, SMSIP3H,.38,90TB

Description:

Buffer/Inverter Based Peripheral Driver,

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BV1LB045FPJ-CE1 information

ROHM BV1LB045FPJ-CE1 technical specifications, attributes, parameters and parts with similar specifications to ROHM BV1LB045FPJ-CE1.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
ROHM CO LTD

Package Description
SOP, SMSIP3H,.38,90TB

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.39.00.01

Date Of Intro
2018-05-18

Samacsys Manufacturer
ROHM Semiconductor

Built-in Protections
TRANSIENT; OVER CURRENT; THERMAL

Driver Number of Bits
1

Interface IC Type
BUFFER OR INVERTER BASED PERIPHERAL DRIVER

JESD-30 Code
R-PSSO-G2

Length
6.6 mm

Number of Functions
1

Number of Terminals
2

Output Characteristics
OPEN-DRAIN

Output Current Flow Direction
SINK

Output Polarity
TRUE

Package Body Material
PLASTIC/EPOXY

Package Code
SOP

Package Equivalence Code
SMSIP3H,.38,90TB

Package Shape
RECTANGULAR

Package Style
SMALL OUTLINE

Screening Level
AEC-Q100

Seated Height-Max
2.5 mm

Supply Voltage-Max
5.5 V

Supply Voltage-Min
3 V

Supply Voltage-Nom
5 V

Surface Mount
YES

Terminal Form
GULL WING

Terminal Pitch
1.15 mm

Terminal Position
SINGLE

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Turn-off Time
120 µs

Turn-on Time
120 µs

Width
6.1 mm

Download datasheets and manufacturer documentation for ROHM BV1LB045FPJ-CE1.

Datasheets:

rohmsemiconductor-bv1lb045fpjce1-datasheets-7693.pdf

BV1LB045FPJ-CE1 Overview

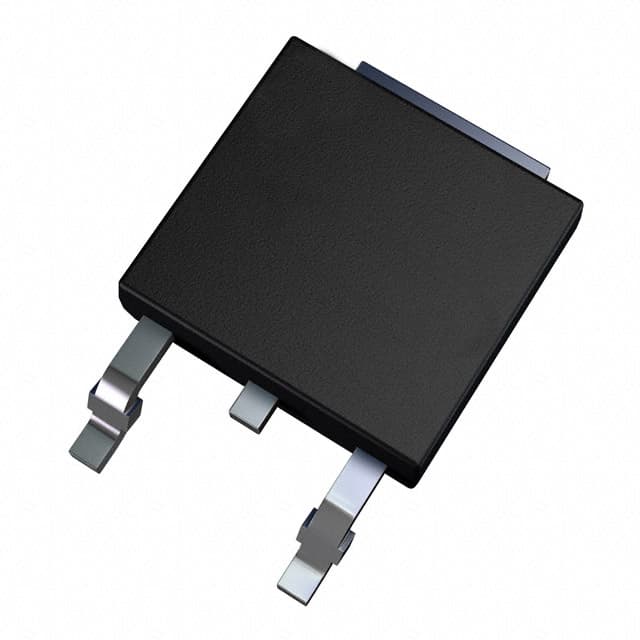

The LED driver's packaged as a Tape & Reel (TR).The TO-252-3, DPak (2 Leads + Tab), SC-63 package contains it.Surface Mount is the mounting type of the LED driver.The switch type is General Purpose.To ensure reliable operation, the temperature should be set to -40°C~150°C TJ.There is a default setting of 1 for output.To operate, it needs a supply voltage of Not Required.The maximum output voltage is N-Channel volts.Its maximum output voltage is 18AV.This electrical component is included in the Automotive, AEC-Q100 series.

BV1LB045FPJ-CE1 Features

BV1LB045FPJ-CE1 Applications

There are a lot of ROHM Semiconductor
BV1LB045FPJ-CE1 Power Switches ICs applications.

Portable GPS Device
Set-top-box
USB Power Distribution
Notebook PC
Telecom and Network Systems
PC Card Hot Swap
Storage Drives
Portable/Handheld Devices
Wireless/Networking Cards
Low Voltage I/O System Power
