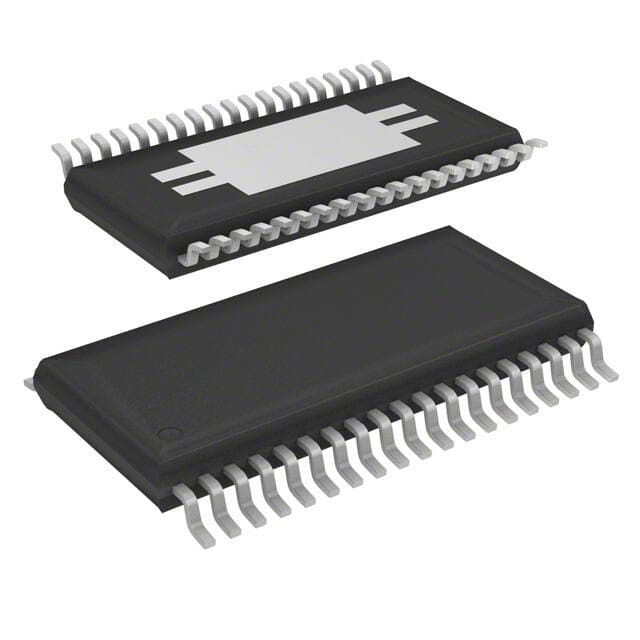

TI BUF20820AIDCPR

Manufacturer No:

BUF20820AIDCPR

Manufacturer:

Package:

38-TFSOP (0.173, 4.40mm Width) Exposed Pad

Description:

38 Terminations 7V~18V 38 Pin BUF20820 Video Amps Modules 1 Functions Min -40°C Max 95°C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BUF20820AIDCPR information

TI BUF20820AIDCPR technical specifications, attributes, parameters and parts with similar specifications to TI BUF20820AIDCPR.

Type
Parameter

Contact Plating
Gold

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
38-TFSOP (0.173, 4.40mm Width) Exposed Pad

Number of Pins
38

Weight
125.900232mg

Packaging
Tape & Reel (TR)

JESD-609 Code
e4

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
38

Max Operating Temperature
95°C

Min Operating Temperature
-40°C

Applications
TFT-LCD Panels: Gamma Buffer, VCOM Driver

HTS Code
8542.39.00.01

Subcategory
Other Analog ICs

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Reach Compliance Code
unknown

Base Part Number
BUF20820

Pin Count
38

Qualification Status
Not Qualified

Output Type
Rail-to-Rail

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
7V

Number of Circuits
18

Analog IC - Other Type
ANALOG CIRCUIT

Operating Supply Current
18mA

Output Current
100mA

Voltage - Supply, Single/Dual (±)
7V~18V

Output Current per Channel
100mA

Length
9.7mm

Height Seated (Max)
1.2mm

Width
4.4mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI BUF20820AIDCPR.

Datasheets:

texasinstruments-buf20820aidcpr-datasheets-2264.pdf

BUF20820AIDCPR Overview

Tape & Reel (TR) is the package format.As a space saver, class d amp is accessible from the 38-TFSOP (0.173, 4.40mm Width) Exposed Pad package.It is an excellent choice for TFT-LCD Panels: Gamma Buffer, VCOM Driver because audio amplifier is highly efficient.Mounting the board based on Surface Mount is the preferred method.With 18 circuits, audio ic has enhanced flexibility.Audio amp to it have the same base part number BUF20820.In this case, audio digital amplifier has a pin count of 38.Digital amplifier has 38 terminations.I have included this audio power amplifier in Other Analog ICs.A 18mA supply current is used for operation.The circuamplifier ic is built using 38 pins.In order to operate properly, the temperature must be below 95°C.It is recommended that the operating temperature is at least -40°C.A mounting method of Surface Mount is used.Keeping the supply voltage (Vsup) above 7V is necessary for normal operation.This scenario has a current output of 100mA.As this audio amp uses an analog IC, it is ANALOG CIRCUIT.
