ROHM BU7241YG-CGTR

Manufacturer No:

BU7241YG-CGTR

Manufacturer:

ROHM

Package:

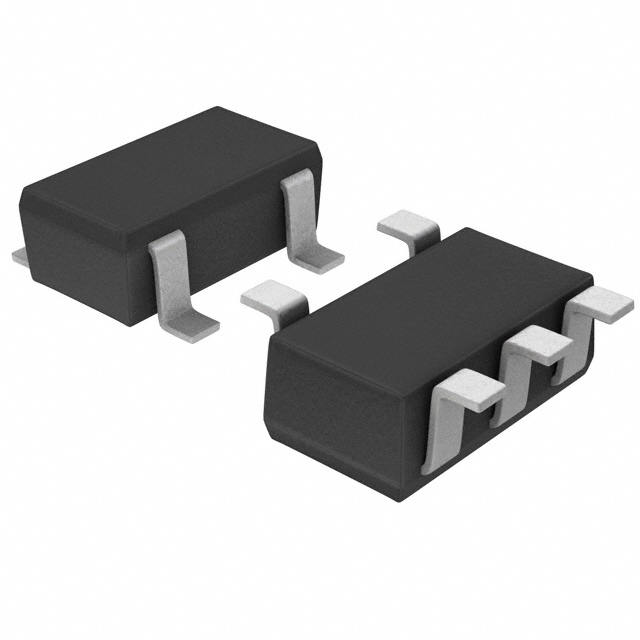

2.90 X 2.80 MM, 1.25 MM HEIGHT, ROHS COMPLIANT, SSOP-5

Description:

Description: Operational Amplifier, 1 Func, 12000uV Offset-Max, CMOS, PDSO5, 2.90 X 2.80 MM, 1.25 MM HEIGHT, ROHS COMPLIANT, SSOP-5

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BU7241YG-CGTR information

ROHM BU7241YG-CGTR technical specifications, attributes, parameters and parts with similar specifications to ROHM BU7241YG-CGTR.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
ROHM CO LTD

Package Description
2.90 X 2.80 MM, 1.25 MM HEIGHT, ROHS COMPLIANT, SSOP-5

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.33.00.01

Factory Lead Time
10 Weeks

Date Of Intro
2016-07-13

Samacsys Manufacturer
ROHM Semiconductor

Amplifier Type
OPERATIONAL AMPLIFIER

Average Bias Current-Max (IIB)
0.006 µA

Common-mode Reject Ratio-Nom
70 dB

Input Offset Voltage-Max
12000 µV

JESD-30 Code
R-PDSO-G5

Length
2.9 mm

Number of Functions
1

Number of Terminals
5

Operating Temperature-Max
125 °C

Operating Temperature-Min
-40 °C

Package Body Material
PLASTIC/EPOXY

Package Code
LSSOP

Package Shape
RECTANGULAR

Package Style
SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Screening Level
AEC-Q100

Seated Height-Max
1.25 mm

Slew Rate-Nom
0.4 V/us

Supply Voltage Limit-Max
7 V

Supply Voltage-Nom (Vsup)
3 V

Surface Mount
YES

Technology
CMOS

Temperature Grade
AUTOMOTIVE

Terminal Form
GULL WING

Terminal Pitch
0.95 mm

Terminal Position
DUAL

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Unity Gain BW-Nom
1000

Width
1.6 mm

Download datasheets and manufacturer documentation for ROHM BU7241YG-CGTR.

Datasheets:

rohmsemiconductor-bu7241ygcgtr-datasheets-7026.pdf

BU7241YG-CGTR Overview

There is a SC-74A, SOT-753 case package that contains the instrumentation amplifiers. The instrumentation amplifier in this picture is of the CMOS-type. Upon delivery, op amp ic is packaged in a Tape & Reel (TR) case. We are approaching the 5h termination of the year. This linear amplifier should be powered by an 3V battery. There are two types of Operational Amplifier op amps in this case, and this device falls into one of them. This electrical part should be mounted using type Surface Mount. In terms of operating temperatures, this buffer amplifier works very well at a temperature of around -40°C~125°C . This op amp contains 1 circuits. One of the many benefits of this op amp ic is that it emits Rail-to-Rail signals. It is recommended that you use an 70?A power supply with this electrical part in order for it to operate correctly. Instrumentation amplifiers are numbered by their Automotive, AEC-Q100 series.

BU7241YG-CGTR Features

supply voltage of 3V
Output Type: Rail-to-Rail

BU7241YG-CGTR Applications

There are a lot of ROHM Semiconductor
BU7241YG-CGTR Instrumentational OP Amps applications.

Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
Signal operation
