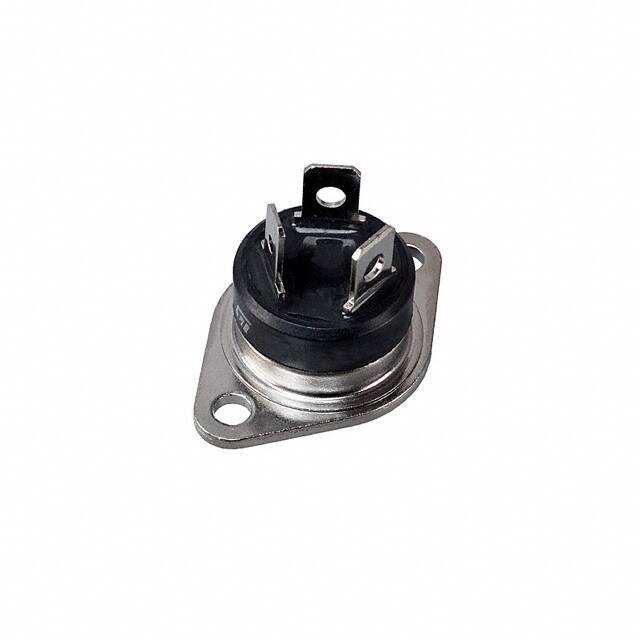

Manufacturer No:

BTW67-600

Manufacturer:

ST

Package:

RD-91

Description:

SCR Standard Recovery -40°C~125°C 1.9V-On State (Vtm) (Max) 10?A-Current - Off State (Max) 3-Termination Bulk RD-91 Chassis Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BTW67-600 information

ST BTW67-600 technical specifications, attributes, parameters and parts with similar specifications to ST BTW67-600.

  • Type
  • Parameter
  • Contact Plating
  • Nickel
  • Mount
  • Chassis Mount, Through Hole
  • Mounting Type
  • Chassis Mount
  • Package / Case
  • RD-91
  • Number of Pins
  • 3
  • Operating Temperature
  • -40°C~125°C
  • Packaging
  • Bulk
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Additional Feature
  • UL RECOGNIZED
  • Subcategory
  • Silicon Controlled Rectifiers
  • Voltage - Rated DC
  • 600V
  • Terminal Position
  • UPPER
  • Terminal Form
  • SOLDER LUG
  • Current Rating
  • 32A
  • Base Part Number
  • BTW67
  • Pin Count
  • 3
  • Number of Elements
  • 1
  • Configuration
  • SINGLE
  • Case Connection
  • ISOLATED
  • Forward Voltage
  • 1.9V
  • Max Repetitive Reverse Voltage (Vrrm)
  • 600V
  • Hold Current
  • 150mA
  • Trigger Device Type
  • SCR
  • Voltage - Off State
  • 600V
  • Voltage - Gate Trigger (Vgt) (Max)
  • 1.3V
  • Current - Non Rep. Surge 50, 60Hz (Itsm)
  • 580A 610A
  • Current - Gate Trigger (Igt) (Max)
  • 80mA
  • Leakage Current (Max)
  • 6mA
  • SCR Type
  • Standard Recovery
  • Voltage - On State (Vtm) (Max)
  • 1.9V
  • Critical Rate of Rise of Off-State Voltage-Min
  • 500V/us
  • Current - Off State (Max)
  • 10?A
  • Desc. of Screw Terminals
  • 0
  • Desc. of Quick-Connects
  • A-G-K
  • Circuit Commutated Turn-off Time-Nom
  • 100 µs
  • Repetitive Peak Off-state Leakage Current-Max
  • 20?A
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for ST BTW67-600.

Datasheets:

BTW67-600 Overview


Current RMS is the average strength of the current without regard to its direction, and the current's RMS current (Irms) is 50A.A diode's maximal repetitive reverse voltage (Vrrm) is the maximum voltage it can withstand in reverse-bias mode, and the Vrrm value for this device is 600V.Electrical, electromagnetic, and electronic devices require a holding current (hypostatic) to remain in the 'ON' state, and the current may be 150mA.Thyristors have a forward voltage of 1.9V, which is the amount of voltage required to get current flowing across a diode.In order to determine the effectiveness of insulation on conductors, leakage current can be measured and its maximum leakage current can be set as 6mA.

BTW67-600 Features


its RMS current (Irms) is 50A
its current can be 150mA
this thyristors has 1.9V forward voltage
its maximal leakage current can be 6mA


BTW67-600 Applications


There are a lot of STMicroelectronics
BTW67-600 applications of SCRs thyristors.


  • DC motor control and drives
  • Battery charges
  • Welders
  • Power converters
  • Lighting control
  • Heat and temperature control
  • Motor starters
  • DC motor controls - AC motor controls
  • Uninterruptable power supplies
  • Wind mill
