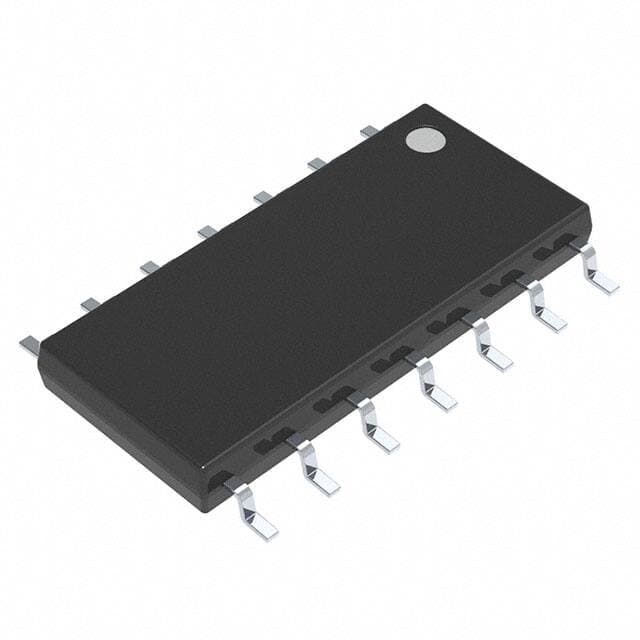

INFINEON BTT60201ERAXUMA1

Manufacturer No:

BTT60201ERAXUMA1

Manufacturer:

INFINEON

Package:

14-SOIC (0.154, 3.90mm Width) Exposed Pad

Description:

N-Channel PMIC Automotive, AEC-Q100, PROFET® Series 36V 14-SOIC (0.154, 3.90mm Width) Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BTT60201ERAXUMA1 information

INFINEON BTT60201ERAXUMA1 technical specifications, attributes, parameters and parts with similar specifications to INFINEON BTT60201ERAXUMA1.

Type
Parameter

Factory Lead Time
18 Weeks

Mounting Type
Surface Mount

Package / Case
14-SOIC (0.154, 3.90mm Width) Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~150°C TJ

Packaging
Tape & Reel (TR)

Series
Automotive, AEC-Q100, PROFET®

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
8

Additional Feature
IT ALSO OPERATE WITH 3.8 TO 5 V SUPPLY

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
36V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
R-PDSO-G8

Number of Outputs
1

Output Type
N-Channel

Supply Voltage-Max (Vsup)
48V

Supply Voltage-Min (Vsup)
5V

Interface
On/Off

Output Configuration
High Side

Input Type
Non-Inverting

Switch Type
General Purpose

Ratio - Input:Output
1:1

Voltage - Load
5V~36V

Fault Protection
Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage

Output Peak Current Limit-Nom
7A

Rds On (Typ)
20m Ω

Built-in Protections
TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

Output Current Flow Direction
SINK

Length
8.65mm

Width
3.9mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for INFINEON BTT60201ERAXUMA1.

Datasheets:

infineontechnologies-btt60201eraxuma1-datasheets-7926.pdf

infineontechnologies-btt60201eraxuma1-datasheets-7927.pdf

BTT60201ERAXUMA1 Overview

Tape & Reel (TR) is the way it's packaged.Package 14-SOIC (0.154, 3.90mm Width) Exposed Pad contains it.The lighting driver has the mounting type Surface Mount.It owns the General Purpose switch type.Keeping the temperature at -40°C~150°C TJ ensures reliable operation.The LED driver has 1 outputs.Operation is based on Not Required supply voltage.Voltage output is N-Channel volts at maximum.It has a total of 8 terminations.It has 1 functions.Supply voltages of 36V allow for high efficiency.This electrical component can be found in the Automotive, AEC-Q100, PROFET® series.The Vsup value (maximum supply voltage) is set to 48V.Normal operation requires a voltage above 5V for the supply voltage.With this LED driver, IT ALSO OPERATE WITH 3.8 TO 5 V SUPPLY can also be produced.
