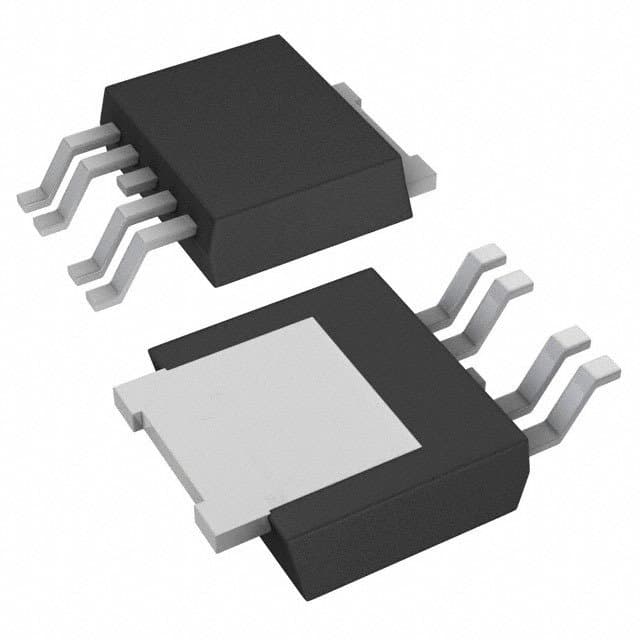

INFINEON BTS6163D

Manufacturer No:

BTS6163D

Manufacturer:

INFINEON

Package:

Description:

5.5/24V 1.14mm PMIC 24V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BTS6163D information

INFINEON BTS6163D technical specifications, attributes, parameters and parts with similar specifications to INFINEON BTS6163D.

Type
Parameter

Surface Mount
YES

Number of Terminals
4

JESD-609 Code
e3

Pbfree Code
icon-pbfree yes

Moisture Sensitivity Level (MSL)
3 (168 Hours)

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

HTS Code
8542.39.00.01

Subcategory
Peripheral Drivers

Terminal Position
SINGLE

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
24V

Terminal Pitch
1.14mm

Reach Compliance Code
compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
3

JESD-30 Code
R-PSSO-G4

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
62V

Power Supplies
5.5/24V

Supply Voltage-Min (Vsup)
5.5V

Interface IC Type
BUFFER OR INVERTER BASED PERIPHERAL DRIVER

Screening Level
AEC-Q100

Turn On Time
300 ?s

Output Peak Current Limit-Nom
5.5A

Turn Off Time
550 ?s

Built-in Protections
TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

Output Current Flow Direction
SINK

Length
6.5mm

Height Seated (Max)
2.5mm

Width
6.22mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for INFINEON BTS6163D.

BTS6163D Description

BTS6163D is a type of smart high-side power switch with integrated vertical power FET, which is manufactured by Infineon Technologies based on Smart SIPMOS? chip on chip technology, providing embedded protection and diagnostic functions. It is able to provide ESD protection, overvoltage protection, current limitation, and thermal shutdown protection when operating.

BTS6163D Features

Thermal shutdown protection
Integrated vertical power FET
Smart SIPMOS? chip on chip technology
Fast demagnetization of inductive loads
Available in the PG-TO252-5-11 package

BTS6163D Applications

Power distribution
Heating applications
Industrial automation
Relay and fuse replacement
Automotive body & convenience
