Manufacturer No:

BTS555

Manufacturer:

INFINEON

Package:

TO-218-5

Description:

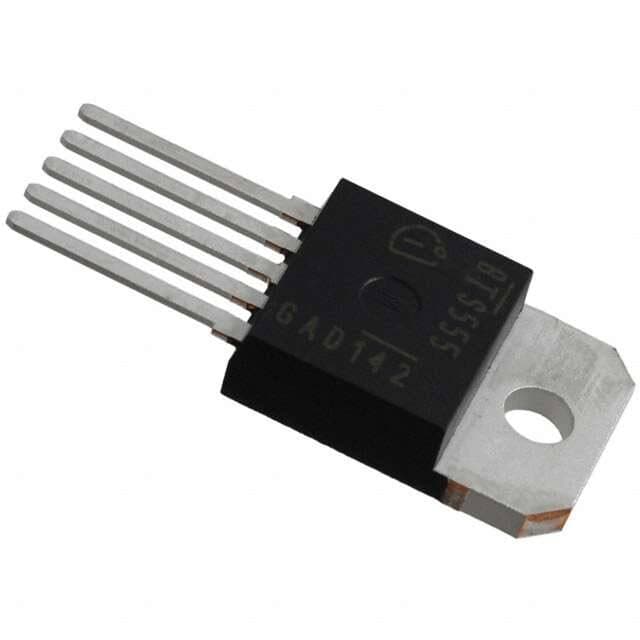

N-Channel PMIC PROFET® Series BTS555 5 Pin 12V TO-218-5

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BTS555 information

INFINEON BTS555 technical specifications, attributes, parameters and parts with similar specifications to INFINEON BTS555.

  • Type
  • Parameter
  • Mounting Type
  • Through Hole
  • Package / Case
  • TO-218-5
  • Surface Mount
  • NO
  • Number of Pins
  • 5
  • Operating Temperature
  • -40°C~150°C TJ
  • Packaging
  • Tube
  • Series
  • PROFET®
  • Published
  • 2004
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 5
  • Termination
  • Through Hole
  • ECCN Code
  • EAR99
  • Resistance
  • 1.9mOhm
  • Subcategory
  • Peripheral Drivers
  • Max Power Dissipation
  • 360W
  • Technology
  • MOS
  • Terminal Position
  • ZIG-ZAG
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Number of Functions
  • 1
  • Supply Voltage
  • 12V
  • Reach Compliance Code
  • unknown
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Base Part Number
  • BTS555
  • Number of Outputs
  • 1
  • Qualification Status
  • Not Qualified
  • Output Type
  • N-Channel
  • Max Output Current
  • 128A
  • Voltage
  • 34V
  • Interface
  • On/Off
  • Current
  • 165A
  • Output Configuration
  • High Side
  • Voltage - Supply (Vcc/Vdd)
  • Not Required
  • Input Type
  • Non-Inverting
  • Switch Type
  • General Purpose
  • Halogen Free
  • Not Halogen Free
  • Continuous Drain Current (ID)
  • 158A
  • Ratio - Input:Output
  • 1:1
  • Voltage - Load
  • 5V~34V
  • Driver Number of Bits
  • 1
  • Fault Protection
  • Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
  • Dual Supply Voltage
  • 34V
  • Turn On Time
  • 600 ?s
  • Output Peak Current Limit-Nom
  • 400A
  • Rds On (Typ)
  • 1.9m ?
  • Turn Off Time
  • 200 ?s
  • Built-in Protections
  • TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

Download datasheets and manufacturer documentation for INFINEON BTS555.

Datasheets:

Other Related Documents:

ConflictMineralStatement:

BTS555 Description

N channel vertical power FET with charge pump, current-controlled input, and diagnostic feedback with load

current sense, integrated into Smart SIPMOS chip on chip technology. Providing embedded protective functions.



BTS555 Features

Overload protection

Current limitation

Short circuit protection

Overtemperature protection

Overvoltage protection (including load dump)

The clamp of negative voltage at the output

Fast de-energizing of inductive loads 2)

Low ohmic inverse current operation

Diagnostic feedback with load current sense

Open load detection via current sense

Loss of Vbb protection3)

Electrostatic discharge (ESD) protection



BTS555 Applications

Power switch with current sense diagnostic

feedback for 12V and 24V DC grounded loads

Most suitable for loads with high inrush current

like lamps and motors; all types of resistive and inductive loads

Replaces electromechanical relays, fuses, and discrete circuits
