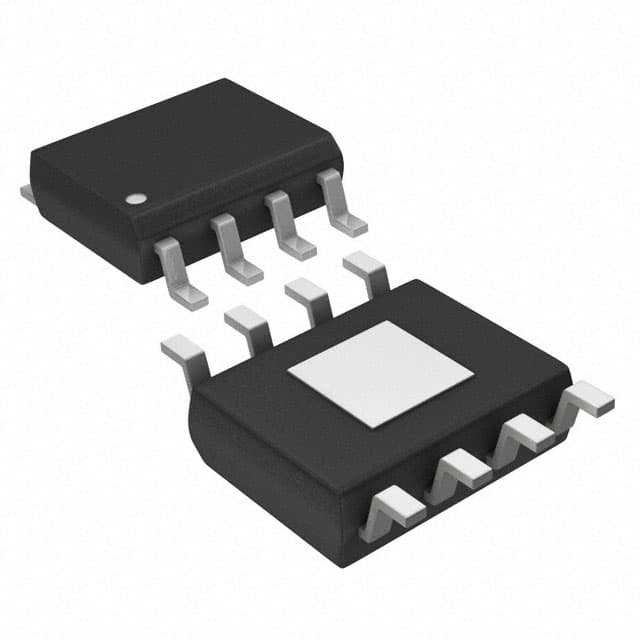

INFINEON BTS3050EJXUMA1

Manufacturer No:

BTS3050EJXUMA1

Manufacturer:

INFINEON

Package:

8-SOIC (0.154, 3.90mm Width) Exposed Pad

Description:

N-Channel PMIC HITFET® Series 5V 8-SOIC (0.154, 3.90mm Width) Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BTS3050EJXUMA1 information

INFINEON BTS3050EJXUMA1 technical specifications, attributes, parameters and parts with similar specifications to INFINEON BTS3050EJXUMA1.

Type
Parameter

Factory Lead Time
26 Weeks

Mounting Type
Surface Mount

Package / Case
8-SOIC (0.154, 3.90mm Width) Exposed Pad

Surface Mount
YES

Usage Level
Automotive grade

Operating Temperature
-40°C~150°C TJ

Packaging
Tape & Reel (TR)

Series
HITFET®

Published
2017

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
2A (4 Weeks)

Number of Terminations
8

ECCN Code
EAR99

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
5V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
R-PDSO-G8

Number of Outputs
1

Output Voltage
40V

Output Type
N-Channel

Output Configuration
Low Side

Voltage - Supply (Vcc/Vdd)
Not Required

Input Type
Non-Inverting

Switch Type
General Purpose

Nominal Input Voltage
5.5V

Ratio - Input:Output
1:1

Voltage - Load
40V Max

Fault Protection
Current Limiting (Fixed), Over Temperature, Over Voltage

Turn On Time
25 μs

Output Peak Current Limit-Nom
22.5A

Rds On (Typ)
44m Ω

Built-in Protections
TRANSIENT; OVER VOLTAGE; THERMAL

Output Current Flow Direction
SINK

Features
Auto Restart

Length
4.9mm

Width
3.9mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for INFINEON BTS3050EJXUMA1.

Product Description:

The BTS3050EJXUMA1 is a high-performance, general-purpose power distribution switch from Infineon Technologies, designed for surface-mount applications. This IC is part of the HITFET? series and is RoHS3 compliant, making it an ideal choice for environmentally conscious designs.

Features:

General-purpose power distribution switch with a maximum voltage of 40V and a maximum current of 22.5A
Low-side output configuration with N-channel output type
Auto restart feature for reliable operation
Built-in protections including transient, over voltage, and thermal protections
Current limiting (fixed), over temperature, and over voltage fault protection
1:1 input-to-output ratio
Operating temperature range of -40°C to 150°C (TJ)
Surface-mount packaging with a 8-SOIC (0.154, 3.90mm Width) exposed pad package

Applications:

Primary applications: Power distribution in automotive, industrial, and consumer electronics
Secondary applications: Power management in medical devices, aerospace, and defense systems

Alternative Parts:

BTS3050EJXUMA1 is a replacement for other Infineon Technologies power distribution switches, such as the BTS3050EJXUMA1, BTS3050EJXUMA1, and BTS3050EJXUMA1.

Embedded Modules:

This component is used in various embedded modules, including:
Automotive power distribution modules
Industrial control systems
Consumer electronics power management modules

Frequently Asked Questions:

Q: What is the maximum voltage of the BTS3050EJXUMA1? A: The maximum voltage is 40V.

Q: What is the maximum current of the BTS3050EJXUMA1? A: The maximum current is 22.5A.

Q: What is the operating temperature range of the BTS3050EJXUMA1? A: The operating temperature range is -40°C to 150°C (TJ).

Q: Is the BTS3050EJXUMA1 RoHS3 compliant? A: Yes, the BTS3050EJXUMA1 is RoHS3 compliant.

Q: What is the packaging type of the BTS3050EJXUMA1? A: The packaging type is 8-SOIC (0.154, 3.90mm Width) exposed pad.
