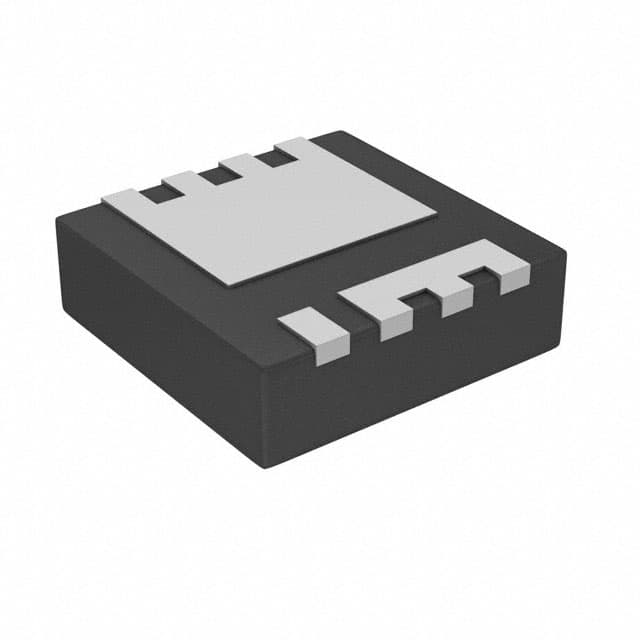

INFINEON BSZ0506NSATMA1
Manufacturer No:
BSZ0506NSATMA1
Manufacturer:
Package:
8-PowerTDFN
Description:
N-Channel Tape & Reel (TR) 4.4m Ω @ 20A, 10V ±20V 950pF @ 15V 15nC @ 10V 8-PowerTDFN
Quantity:
Delivery:
Payment:
PRICING (in USD)
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $ 0.480000 | $ 0.480000 |
| 10 | $ 0.353000 | $ 3.530000 |
| 100 | $ 0.267500 | $ 26.750000 |
| 500 | $ 0.223500 | $ 111.750000 |
In Stock :Available
Want a lower wholesale price? Please send RFQ, we will respond immediately.
BSZ0506NSATMA1 information
INFINEON BSZ0506NSATMA1 technical specifications, attributes, parameters and parts with similar specifications to INFINEON BSZ0506NSATMA1.
| Type | Parameter |
|---|---|
| Factory Lead Time | 18 Weeks |
| Contact Plating | Tin |
| Mount | Surface Mount |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerTDFN |
| Number of Pins | 8 |
| Transistor Element Material | SILICON |
| Current - Continuous Drain (Id) @ 25℃ | 15A Ta 40A Tc |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V 10V |
| Number of Elements | 1 |
| Power Dissipation (Max) | 2.1W Ta 27W Tc |
| Operating Temperature | -55°C~150°C TJ |
| Packaging | Tape & Reel (TR) |
| Series | OptiMOS™ |
| Published | 2013 |
| Pbfree Code | yes |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Number of Terminations | 3 |
| ECCN Code | EAR99 |
| Terminal Position | DUAL |
| Terminal Form | NO LEAD |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Reach Compliance Code | not_compliant |
| Type | Parameter |
|---|---|
| JESD-30 Code | S-PDSO-N3 |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| Operating Mode | ENHANCEMENT MODE |
| Case Connection | DRAIN |
| FET Type | N-Channel |
| Transistor Application | SWITCHING |
| Rds On (Max) @ Id, Vgs | 4.4m Ω @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250μA |
| Halogen Free | Halogen Free |
| Input Capacitance (Ciss) (Max) @ Vds | 950pF @ 15V |
| Gate Charge (Qg) (Max) @ Vgs | 15nC @ 10V |
| Rise Time | 2.4ns |
| Vgs (Max) | ±20V |
| Continuous Drain Current (ID) | 40A |
| Gate to Source Voltage (Vgs) | 20V |
| Max Dual Supply Voltage | 30V |
| Drain Current-Max (Abs) (ID) | 15A |
| Drain-source On Resistance-Max | 0.0053Ohm |
| Pulsed Drain Current-Max (IDM) | 160A |
| Avalanche Energy Rating (Eas) | 20 mJ |
| RoHS Status | ROHS3 Compliant |
| Lead Free | Contains Lead |
