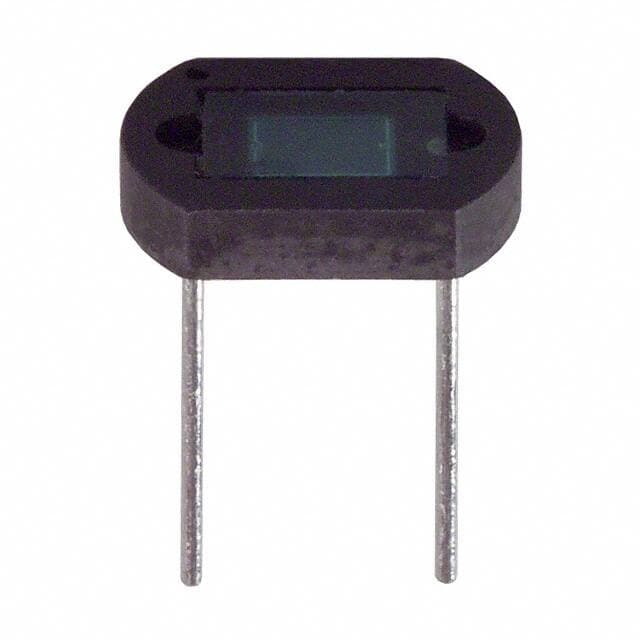

SHARP BS500B

Manufacturer No:

BS500B

Manufacturer:

SHARP

Package:

Side View

Description:

Through Hole -20°C~60°C Bulk Wavelength: 560nm Side View 10V 5.34mm2 3pA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BS500B information

SHARP BS500B technical specifications, attributes, parameters and parts with similar specifications to SHARP BS500B.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Side View

Operating Temperature
-20°C~60°C

Packaging
Bulk

Published
2005

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Reach Compliance Code
unknown

Voltage - DC Reverse (Vr) (Max)
10V

Max Reverse Voltage (DC)
10V

Wavelength
560nm

Dark Current
3pA

Spectral Range
500nm ~ 600nm

Active Area
5.34mm2

Color - Enhanced
Blue

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for SHARP BS500B.

BS500B Overview

Photodiodes are enclosed in Bulk to prevent damage. Photodiodes are packaged in Side View packages in order to ensure their safety. Continuous reverse-bias means the photodiodes can withstand only 10V voltage. When reverse-biased, the photodiodes should not continually exceed 10V. There is 3pA current flowing through a photodiode even in the absence of light input.

BS500B Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -20°C~60°C
Packaging: Bulk
Mount: Through Hole
Spectral Range: 500nm ~ 600nm

BS500B Applications

There are a lot of Sharp Microelectronics
BS500B Photodiodes applications.

Machine Controls
Light Barriers
Vision Controls
Measurement Levelling
High speed photo detectors
Health Monitoring
Heart Rate Monitoring
Pulse Oximetry
Pure UV-C Monitoring
Sterilization Lamp Monitoring
