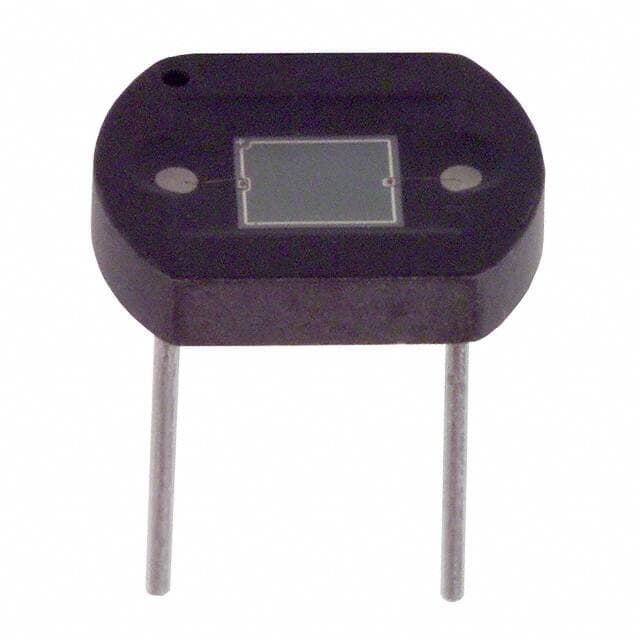

SHARP BS500A0F

Manufacturer No:

BS500A0F

Manufacturer:

SHARP

Package:

Side View

Description:

Through Hole -10°C~60°C Bulk Wavelength: 850nm Side View 10V 5.34mm2 10pA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BS500A0F information

SHARP BS500A0F technical specifications, attributes, parameters and parts with similar specifications to SHARP BS500A0F.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Side View

Number of Pins
2

Operating Temperature
-10°C~60°C

Packaging
Bulk

Published
2005

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Voltage - DC Reverse (Vr) (Max)
10V

Max Reverse Voltage (DC)
10V

Wavelength
850nm

Dark Current
10pA

Spectral Range
800nm ~ 900nm

Active Area
5.34mm2

Color - Enhanced
Blue

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for SHARP BS500A0F.

Datasheets:

sharpmicroelectronics-bs500a-datasheets-6112.pdf

BS500A0F Overview

Bulk is used to protect the photodiodes from damage. A safety package containing the photodiodes is provided for their protection. When photodiodes are continuously reverse-biased, the maximum voltage they can withstand is 10V. When the photodiodes are reverse-biased, the voltage should never exceed 10V. A photodiode has a pin number of 2. The current in a photodiode is 10pA even when there is no light input.

BS500A0F Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -10°C~60°C
Packaging: Bulk
Mount: Through Hole
Spectral Range: 800nm ~ 900nm

BS500A0F Applications

There are a lot of Sharp Microelectronics
BS500A0F Photodiodes applications.

Shaft encoders
Electronic Equipment
Industrial Automation
Machine Controls
Light Barriers
Vision Controls
Measurement Levelling
High speed photo detectors
Health Monitoring
Heart Rate Monitoring
