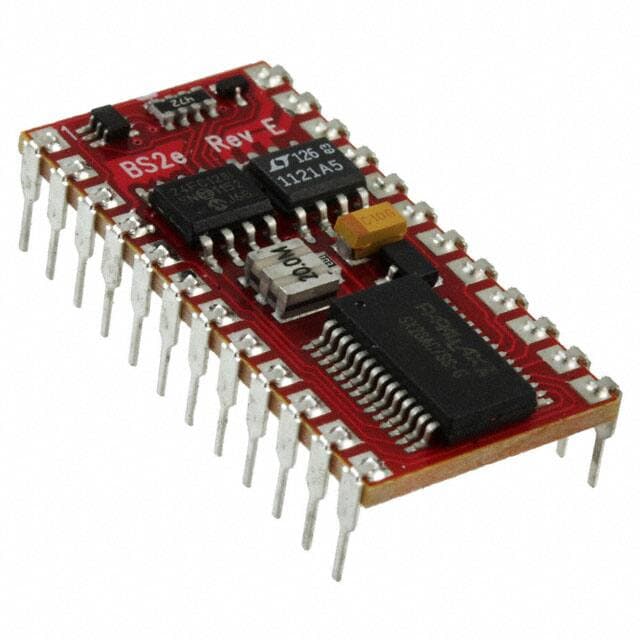

Parallax BS2E-IC
Manufacturer No:
BS2E-IC
Manufacturer:
Package:
Module
Description:
MCU Core SX28AC 1.2 x 0.6 30mmx15mm 0°C~70°C 16KB EEPROM BASIC Stamp® 32B 20MHz 20MHz
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
BS2E-IC information
Parallax BS2E-IC technical specifications, attributes, parameters and parts with similar specifications to Parallax BS2E-IC.
- Type
- Parameter
- Package / Case
- Module
- Number of Pins
- 24
- Weight
- 4.989998g
- Operating Temperature
- 0°C~70°C
- Packaging
- Bulk
- Series
- BASIC Stamp®
- Published
- 2004
- Size / Dimension
- 1.2 x 0.6 30mmx15mm
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Max Operating Temperature
- 70°C
- Min Operating Temperature
- 0°C
- Frequency
- 20MHz
- Operating Supply Voltage
- 12V
- Interface
- Serial
- Memory Size
- 64B
- Speed
- 20MHz
- RAM Size
- 32B
- Memory Type
- RAM
- Core Processor
- SX28AC
- Address Bus Width
- 8b
- Power Consumption
- 125mW
- Module/Board Type
- MCU Core
- Flash Size
- 16KB EEPROM
- Length
- 101.6mm
- Width
- 101.6mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for Parallax BS2E-IC.
BS2E-IC Overview
A MCU Core module or board is used in the microcontroller.It has SX28AC cores and is driven by a processor.Microcontrollers are configured by default to 0°C~70°C.MCU chips flash size is 16KB EEPROM.This MCUs belongs to the BASIC Stamp® Series of MCUs.A minimum RAM size of 32B is set to enable the software to run normally.During operation, the MCU chip moves at 20MHz speed.20MHz frequency can still be used accurately.Microprocessor has the Module package.70°C is the maximum operational temperature at this time.As microprocessor operates, microprocessor should be warmer than 0°C.Powered by 12V volts, this microcontrollers operates on DC DC power.A value of RAM has been selected for data storage.This microcontroller is packaged in a Bulk-size box.A memory of 64B is embedded in the microchips, and this memory can be used to store data and programs.
BS2E-IC Features
Core processor of SX28AC
Flash size of 16KB EEPROM
Speed of 20MHz
Bulk packaging
BS2E-IC Applications
There are a lot of Parallax Inc.
BS2E-IC Microcontroller, Microprocessor, FPGA Modules applications.
- Test and Measurement
- Medical Devices
- Data Acquisition
- Industrial Control
- Process Control
- Process Monitoring
- Healthcare Monitoring
- Patient Monitoring
- IoT Secure Gateways
- Human Machine Interface
