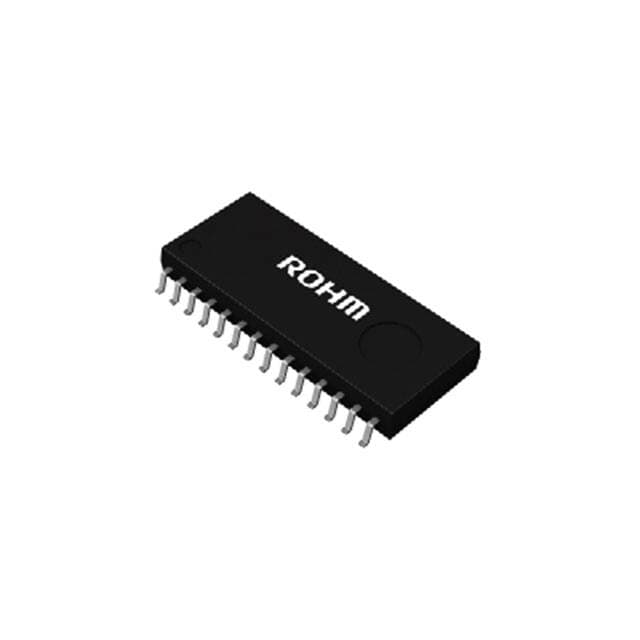

ROHM BS2132F-E2

Manufacturer No:

BS2132F-E2

Manufacturer:

ROHM

Package:

28-SOIC (0.295, 7.50mm Width)

Description:

Surface Mount Active Gate Drivers ICs Non-Inverting 3 600V V 28-SOIC (0.295, 7.50mm Width) High-Side

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BS2132F-E2 information

ROHM BS2132F-E2 technical specifications, attributes, parameters and parts with similar specifications to ROHM BS2132F-E2.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
28-SOIC (0.295, 7.50mm Width)

Operating Temperature
-40°C~125°C TA

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Voltage - Supply
11.5V~20V

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Input Type
Non-Inverting

Rise / Fall Time (Typ)
125ns 50ns

Interface IC Type
HALF BRIDGE BASED MOSFET DRIVER

Channel Type
3-Phase

Number of Drivers
3

Driven Configuration
High-Side

Gate Type
IGBT, N-Channel MOSFET

Logic Voltage - VIL, VIH
0.8V 2.6V

High Side Voltage - Max (Bootstrap)
600V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ROHM BS2132F-E2.

Datasheets:

rohmsemiconductor-bs2132fe2-datasheets-2817.pdf

BS2132F-E2 Overview

There is greater flexibility with the 28-SOIC (0.295, 7.50mm Width) package.A total of 3 drivers are integrated into its configuration.Surface Mount is mounted in the way.By using 11.5V~20V supply voltage, it is able to demonstrate its superiority.The gate type on this device is IGBT, N-Channel MOSFET.This device allows temperatures in the range of -40°C~125°C TA.A type of Non-Inverting is used for input in this program.As its interface IC, HALF BRIDGE BASED MOSFET DRIVER is being employed.Mosfet driver is possible to set the high-side voltage - Max (Bootstrap) to 600V.

BS2132F-E2 Features

3 drivers
Employing a gate type of IGBT, N-Channel MOSFET
High-side voltage - Max (Bootstrap) of 600V

BS2132F-E2 Applications

There are a lot of ROHM Semiconductor
BS2132F-E2 gate drivers applications.

Head-up and Head mounted displays
High current laser/LED systems
LCD/LCoS/DLP portable and embedded pico projectors
Multicolor LED/laser displays
Smart Phones
Portable Navigation Devices
Portable Media Players
Motor Controls
DC-DC Converters
AC-DC Inverters
