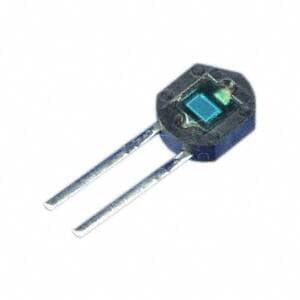

SHARP BS120E0F

Manufacturer No:

BS120E0F

Manufacturer:

SHARP

Package:

Side View

Description:

Through Hole -20°C~60°C Bulk Wavelength: 560nm Side View 1.55mm2 3pA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BS120E0F information

SHARP BS120E0F technical specifications, attributes, parameters and parts with similar specifications to SHARP BS120E0F.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Side View

Shape
RECTANGULAR

Operating Temperature
-20°C~60°C

Packaging
Bulk

Published
2005

JESD-609 Code
e1

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Number of Functions
1

Reach Compliance Code
unknown

Configuration
SINGLE

Rise Time
60?s

Fall Time (Typ)
60 ?s

Max Reverse Voltage (DC)
10V

Reverse Voltage
10V

Wavelength
560nm

Dark Current
3pA

Spectral Range
500nm ~ 600nm

Active Area
1.55mm2

Infrared Range
NO

Light Current-Nom
0.00016mA

Lead Free
Lead Free

Download datasheets and manufacturer documentation for SHARP BS120E0F.

Datasheets:

sharpmicroelectronics-bs120e0f-datasheets-0612.pdf

sharp-bs120e0f-datasheets-6980.pdf

BS120E0F Overview

To protect them from damage, these photodiodes are packaged in the Bulk. For safety reasons, the photodiodes are packaged in Side View packages. When operating in reverse-bias mode, the photodiodes should not exceed 10V. Reverse-biased photodiodes could supply 10V voltage. In the absence of light input, a photodiode produces 3pA current.

BS120E0F Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -20°C~60°C
Packaging: Bulk
Mount: Through Hole
Spectral Range: 500nm ~ 600nm

BS120E0F Applications

There are a lot of Sharp Microelectronics
BS120E0F Photodiodes applications.

Infrared remote control
Infrared data transmission
Photo interrupters
Shaft encoders
Electronic Equipment
Industrial Automation
Machine Controls
Light Barriers
Vision Controls
Measurement Levelling
